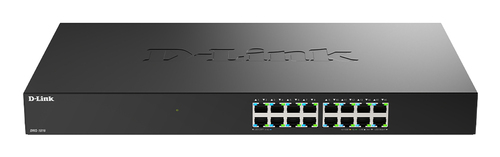

D-Link 16-Port 2.5G Multi-Gigabit Unmanaged Switch, Unmanaged, 2.5G Ethernet (100/1000/2500)

Plug & Play No complex configurations required for fast and easy network connectivity

2.5G Ports Multi-Gigabit ports for high data rate transmission

Multicast Optimization IGMP snooping feature prevents network flooding

Rugged Design Compact metal casing improves device durability

Silent Operation Fanless design for a noise-free working environment

Optimized Performance QoS prioritizes traffic, enhancing user experience

2.5G Ports for Faster Data Rates New generation Wi-Fi delivers ultra-fast speeds with low latency and standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, enabling significantly faster data rates for Wi-Fi APs, smoother 4K/8K streaming, HD surveillance, AR/VR gaming, NAS, and many more applications in data-intensive environments.

Smarter Multicast, Smoother Performance The DMS-1016 enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

Prioritize Traffic for Optimized Performance With the DMS-1016, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

Eco-Friendly and Cost Saving The DMS-1016 optimizes energy use and cuts operating costs with intelligent power management that reduces consumption during idle periods. The fanless design enables silent operation while minimizing maintenance and expenses. Experience a cost-effective, eco-friendly solution that saves money and promotes sustainability.

Specifications

BrandD-LINK
Manufacturer part no.DMS-1016/B
Our part no.CP55160
EAN0790069477997
CategoryNetworking › Unmanaged Switches
Weight4.2 kg
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Traffic classificationYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Power connectorDC-in jack
Network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G supportNo
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Data transmission
Switching capacity80 Gbit/s
Forwarding rate59.52 Mpps
MAC address table16000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames12288
Design
StackableYes
Product colourBlack
LED indicatorsYes
Performance
Mean time between failures (MTBF)800034.25 h
Power
Power sourceDC
Power supply includedYes
DC input voltage12 V
Input current5.4 A
Power consumption (max)19.135 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)0 - 95%
Heat dissipation62.29 BTU/h
Weight & dimensions
Width440 mm
Depth250 mm
Height44 mm
Weight2.93 kg
Packaging content
Quick start guideYes
Certificates
CertificationLVD; CE Class A, FCC Class A
