Description

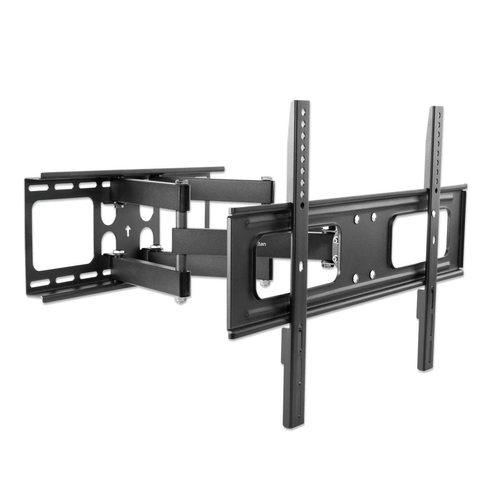

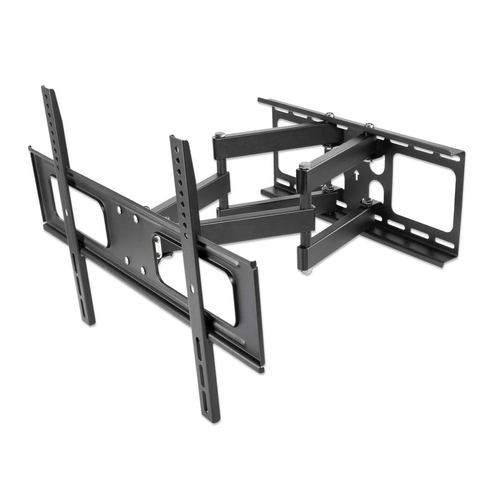

Manhattan Outdoor Wall Mount for TV & Monitors (Full Motion), For screens 37" to 65", VESA compatibility: all between 200x200mm to 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 50kg, Weatherproof, Bracket, 200 x 200 mm, 600 x 400 mm, -10 - 20°, -60 - 60°, Steel, Black

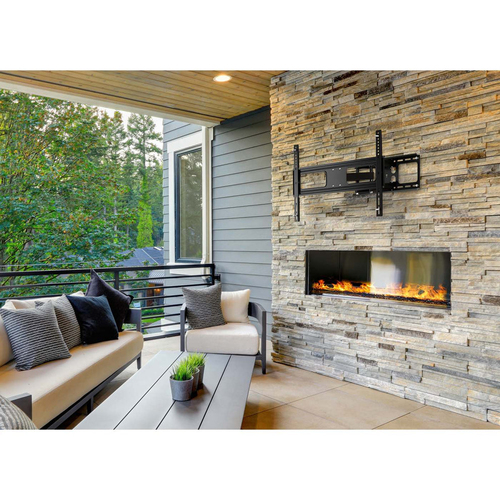

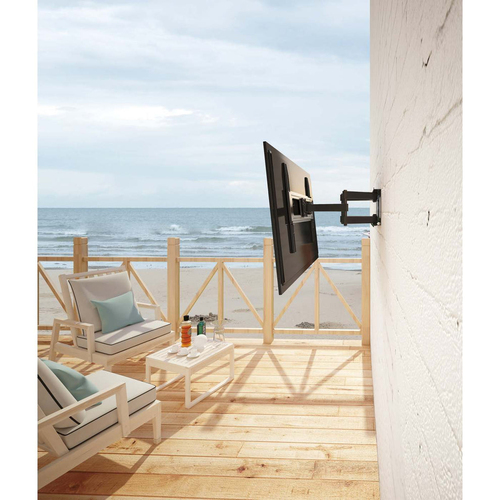

Weatherproof Outdoor TV Mount - Engineered for the Elements, Built for the Best View From patios to poolside, the Manhattan Outdoor Full-Motion TV Wall Mount lets you enjoy your favorite sports and other entertainment in the open air.
Weather-Friendly Construction Crafted for long-lasting durability, this mount features electroplating, extended powder coating, and stainless-steel hardware to stand up to the elements. Its weatherproof design resists corrosion, rain, and humidity, making it a solid choice even in coastal environments.
Flexible Viewing for Any Setting Whether you're hosting a backyard movie night or setting up a patio display, this full-motion mount offers a complete range of adjustments. Achieve the perfect viewing angle with +10° to -20° tilt, ±60° swivel, and ±3° post-installation leveling.
Strong and Safe Designed to support one flat or curved 37"" to 86"" TV weighing up to 50 kg (110 lbs.), this mount is made from high-quality cold-rolled steel with metal thickness up to 2.5 mm.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 462150 |
| Our part no. | CP56906 |
| EAN | 0766623462150 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 7.5 kg |
| Mounting | |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum screen size | 2.18 m (86") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
| Mounting type | Wall |
| Ergonomics | |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 20° |
| Swivelling | Yes |
| Swivel angle | 120° |
| Swivel angle range | -60 - 60° |
| Wheels | No |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| Easy to install | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Weight & dimensions | |
| Width | 660 mm |
| Depth (min) | 6.3 cm |
| Depth (max) | 51 cm |
| Height | 430 mm |
| Weight | 7.1 kg |
| Packaging data | |
| Quantity per pack | 1 pair(s) |
| Package width | 700 mm |
| Package depth | 220 mm |
| Package height | 70 mm |
| Package weight | 7.45 kg |
