Description

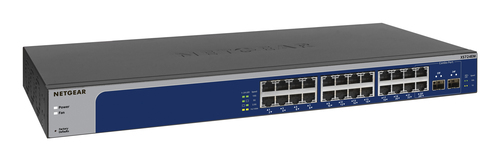

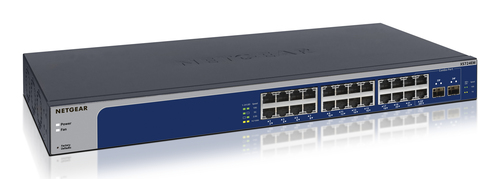

NETGEAR XS724EM, Managed, L2, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Unlock your Network Potential with 10-Gigabit/Multi-Gigabit 5-Speed Networking Switches Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.
With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | XS724EM-200EUS |
| Our part no. | CP81938 |
| EAN | 0606449174458 |
| Category | Networking › Unmanaged Switches |
| Weight | 4.2 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Data transmission | |
| Switching capacity | 480 Gbit/s |
| MAC address table | 32000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Blue, Grey |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Performance | |
| Mean time between failures (MTBF) | 830493 h |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Input current | 2 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 513.88 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 204 mm |
| Height | 43 mm |
| Weight | 3.72 kg |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Certificates | |
| Certification | 47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
