Description

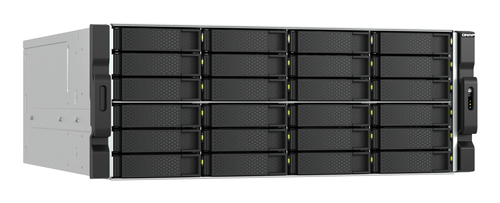

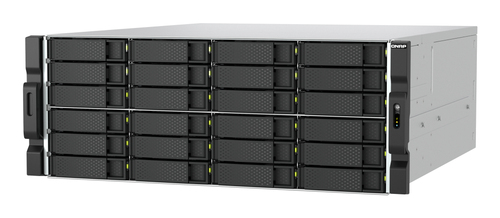

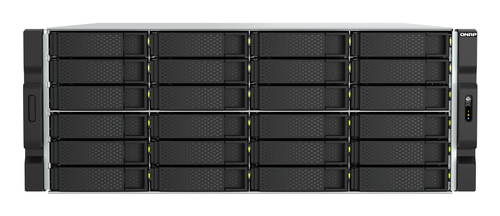

QNAP TS-H2477AXU-RP-R7-32G, Storage server, Rack (4U), AMD Ryzen™ 7, 7745, 32 GB, DDR5
TS-h2477AXU-RP AMD Ryzen™ 7 PRO 7000 Series Processor and ZFS Data Integrity for Enterprise Storage and Virtualization
Purpose-built for high-performance environments, the TS-h2477AXU-RP features 24-bay SATA drive support and dual PCIe Gen 5 M.2 SSD slots to handle massive storage volumes and ultra-fast data access. Redundant power supplies ensure uninterrupted operation for mission-critical workloads. Powered by the AMD Ryzen™ 7 PRO 7000 series processor and the ZFS file system, it delivers enterprise-level data integrity and protection. Ideal for mid to large-sized teams running file servers, virtualization platforms, long-term data archiving, media production, and large-scale surveillance recording.
Specifications
| Brand | QNAP |
|---|---|
| Manufacturer part no. | TS-H2477AXU-RP-R732G |
| Our part no. | CQ07863 |
| EAN | 4711103089835 |
| Category | Storage Systems › Other (0210) |
| Weight | 27 kg |
| Storage | |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | M.2, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of system drives supported | 2 |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext2, ext3, ext4 |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 24 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Bad block scan | Yes |
| Disk roaming | Yes |
| Processor | |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen PRO 7000 Series |
| Processor family | AMD Ryzen™ 7 |
| Processor model | 7745 |
| Processor boost frequency | 5.3 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Number of processors supported | 1 |
| On-board graphics card model | AMD Radeon Graphics |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 192 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| ECC | No |
| Flash memory | 5000 MB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Supported network protocols | IPv4, IPv6 |
| Dynamic DNS (DDNS) | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
| Chassis type | Rack (4U) |
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | Power, Status |
| Performance | |
| Type | Storage server |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Number of users | 4096 user(s) |
| Web-based management | Yes |
| Remote administration | PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| System log | Yes |
| Password authentication | Yes |
| Disk scan | Yes |
| S.M.A.R.T. support | Yes |
| Share folder | Y |
| Software | |
| Operating system installed | QNAP QTS |
| Operating system version | 5.2.6 |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 511.7 mm |
| Height | 177.3 mm |
| Package width | 600 mm |
| Package depth | 940 mm |
| Package height | 420 mm |
| Package weight | 27.7 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Number of screws | 168 |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Other features | |
| Warranty period | 5 year(s) |
