Description

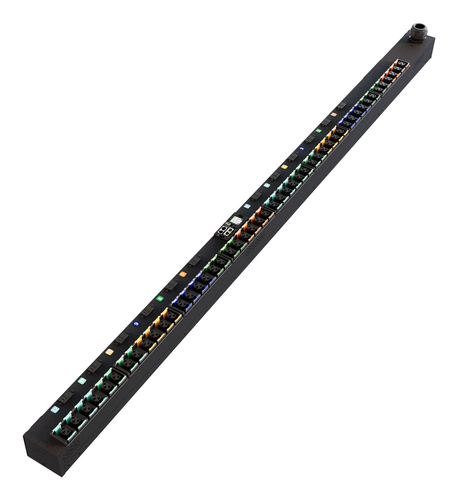

Vertiv PowerIT rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug, Monitored, Switched, 0U, Three-phase, Vertical, Black, 48 AC outlet(s)
The Vertiv PowerIT Switched Outlet Level Monitored High Density Rack Power Distribution Unit (rPDU) VP7U60A1 is an upgradeable, 60/63A, 240/415V WYE, 0U, vertical rPDU with input monitoring and outlet level monitoring and switching. It has 48 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also has a 3P+N+E (IP44) plug providing 43.4kW of power capacity. This model allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | VP7U60A1 |
| Our part no. | CQ34000 |
| Category | Power & UPS › PDUs |
| Weight | 21.6 kg |
| Design | |
| PDU types | Monitored, Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 48 AC outlet(s) |
| Power plug | Type E / Type F |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| USB ports quantity | 1 |
| Features | |
| Cable length | 3.048 m |
| Management features | |
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
| Power | |
| Nominal input voltage | 240 - 415 V |
| Maximum current | 63 A |
| Power protection features | Over current |
| Maximum power | 43400 W |
| Certificates | |
| Compliance certificates | China RoHS, Trade Agreements Act (TAA), RoHS |
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
| Weight & dimensions | |
| Width | 96.5 mm |
| Depth | 76.2 mm |
| Height | 2114.6 mm |
| Weight | 11.3 kg |
| Packaging data | |
| Package weight | 11.3 kg |
| Package width | 279.4 mm |
| Package depth | 2209.8 mm |
| Package height | 177.8 mm |
| Logistics data | |
| Country of origin | United States |
