Description

Vertiv Geist VP7UV0A3, Switched, 0U, Single-phase, Vertical, Black, LCD

The Vertiv Geist VP7UV0A3 is a vertical rack power distribution unit with a universal input that supports common AC power configurations. It has (24) Combination C13/C19 receptacles providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single phase and three phase configurations. It helps simplify the procurement process of rPDUs since users can use a single model to work with different power sources. To define the input power configuration, choose the right Facility Side Cable (sold separately) to install the Vertiv Geist UPDU in your network system. The Vertiv-patented U-Lock outlets help secure plug connections and lessen the risk of downtime caused by accidental cord disconnection.

REDUNDANT POWER-SHARING The next generation Interchangeable Monitoring Device features a redundant power-sharing port that allows users to connect two IMDs in the rack and provide backup power to the IMD in case of power loss.

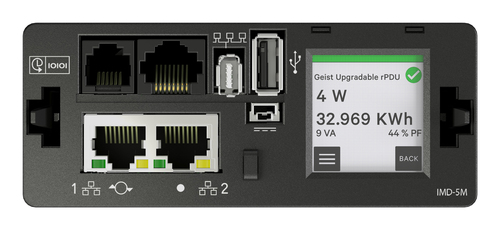

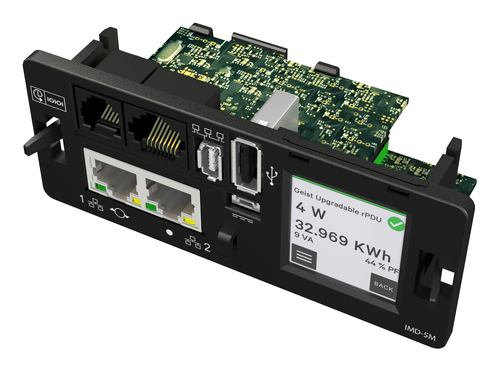

HIGH-VISIBILITY DISPLAY This smart PDU is integrated with the next-generation rPDU IMD that displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.

ENHANCED SECURITY Includes security enhancements that feature secure boot utilizing a hardware-based trust anchor to help ensure that data and operations are protected.

INDUSTRY CERTIFIED (UL, CE, TAA, RoHS) Each rack mount PDU is UL Listed and TAA-Compliant. It undergoes individual testing for functionality and reliability to ensure your network is powered by a reliable smart power strip. The unit comes with a 3-year warranty that can be extended to 5 years if registered within 120 days of purchase.

Specifications
