Description

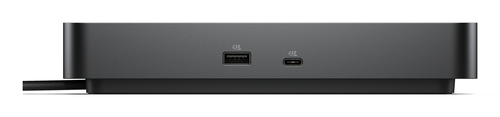

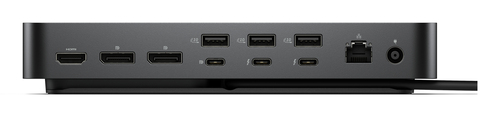

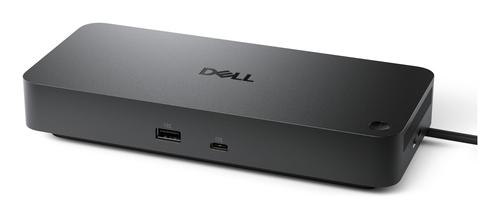

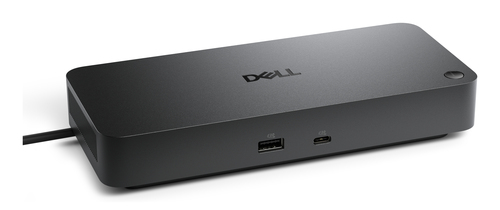

DELL WD25TB5, Wired, Thunderbolt 5, 2500 Mbit/s, Black, 1.25 Gbit/s, 6144 x 3456 pixels
Conquer intense workloads with the most powerful Thunderbolt 5 Dock, and with up to 300W power delivery.
Specifications
| Brand | DELL EMC |
|---|---|
| Manufacturer part no. | DELL-WD25TB5 |
| Our part no. | CQ45518 |
| EAN | 5397321029076 |
| Category | Docks, Bags & Racks › Docking Stations |
| Weight | 2 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1 |
| Thunderbolt 5 ports quantity | 2 |
| Microphone in | No |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 1.25 Gbit/s |
| Maximum digital resolution | 6144 x 3456 pixels |
| Number of displays supported | 4 |
| Maximum refresh rate | 120 Hz |
| Cable lock slot type | Kensington |
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Yes |
| Power | |
| Power source type | DC |
| Power supply | 330 W |
| Power cable length | 0.83 m |
| Wireless charging | No |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Ubuntu 24.04 LTS |
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 35.3 mm |
| Height | 205 mm |
| Weight | 620 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 102 |
| Carbon emissions, manufacturing (kg of CO2e) | 60.18 |
| Carbon emissions, logistics (kg of CO2e) | 2.04 |
| Carbon emissions, energy usage (kg of CO2e) | 37.94 |
| Carbon emissions, end-of-life (kg of CO2e) | 1.84 |
| PAIA version | GaBi version 1, 2025 |
