Description

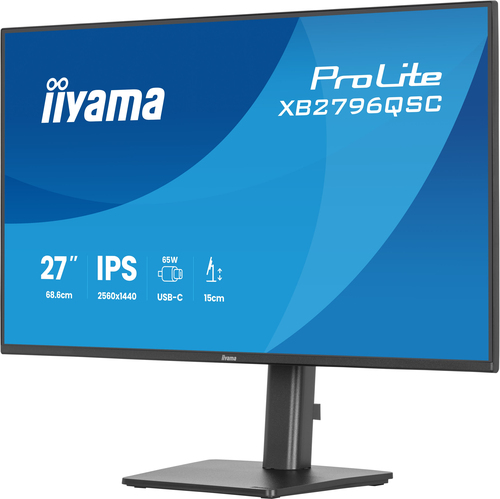

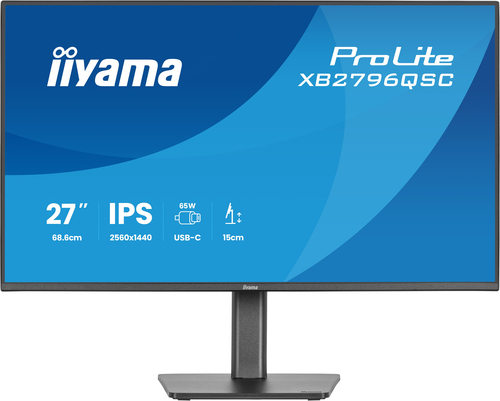

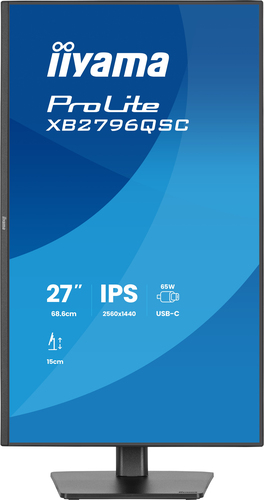

iiyama ProLite XB2796QSC-B1, 68.6 cm (27"), 2560 x 1440 pixels, Quad HD, LED, 4 ms, Black
Spacious, efficient, and built for modern work, the 27” ProLite XB2796QSC-B1 helps professionals stay productive in hybrid and office environments. Its QHD resolution (2560x1440) offers 77% more screen space than Full HD, allowing you to view more data, compare documents side by side and multitask with ease. Slim bezels on all sides make it ideal for multi-monitor setups, while the ergonomic stand with height, tilt, swivel and pivot adjustments supports a healthy, comfortable posture throughout the day. The IPS panel delivers accurate colours and wide viewing angles, perfect for business use, video meetings and content previews. One USB-C cable handles both video signal and up to 65W of power to your laptop, reducing cable clutter and simplifying setup. Flicker-free technology and a blue light reducer help minimise eye strain during extended use. From data analysis to meetings, the XB2796QSC-B1 brings clarity, comfort and smart connectivity to your daily workflow.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | XB2796QSC-B1 |
| Our part no. | CQ47520 |
| EAN | 4948570127023 |
| Category | Monitors & Displays › Touch & Portable Monitors |
| Weight | 8.7 kg |
| Display | |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 2560 x 1440 pixels |
| HD type | Quad HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | No |
| Display brightness (typical) | 350 cd/m² |
| Response time | 4 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.233 x 0.233 mm |
| Horizontal scan range | 30 - 120 kHz |
| Vertical scan range | 48 - 75 Hz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display diagonal (metric) | 68.5 cm |
| DDC/CI | Yes |
| Colour gamut standard | NTSC, sRGB |
| sRGB coverage (typical) | 96% |
| NTSC coverage (typical) | 72% |
| Performance | |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Frameless design | Yes |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 1 |
| Number of downstream ports | 2 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 1 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Number of OSD languages | 11 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 20.1 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width (with stand) | 613.5 mm |
| Depth (with stand) | 224.5 mm |
| Height (with stand) | 550.5 mm |
| Weight (with stand) | 6 kg |
| Height (without stand) | 404.5 mm |
| Packaging data | |
| Package width | 690 mm |
| Package depth | 140 mm |
| Package height | 465 mm |
| Package weight | 7.6 kg |
| Package type | Box |
| USB cable length | 1 m |
| Packaging content | |
| Cables included | AC, USB Type-C |
| Quick start guide | Yes |
| Power cable length | 1.8 m |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| User controls | picture adjust (brightness, contrast, Eco, ACR, OD, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temperature), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, USB-C speed, USB charge, DDC/Ci control), Input select, audio settings (volume, mute audio), recall (recall all) |
| Packaging content | quick start guide, safety guide |
| Weight | 6 kg |
| Width | 613.5 mm |
| Depth | 224.5 mm |
| Control panel | Joystick: Menu (Centre), Up/ Signal Select, Down/ Brightness/ OD/ Eco/ i-Style Colour, Left/ Volume Down, Right/ Volume Up, Power |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Technical details | |
| Native refresh rate | 60 Hz |
