Description

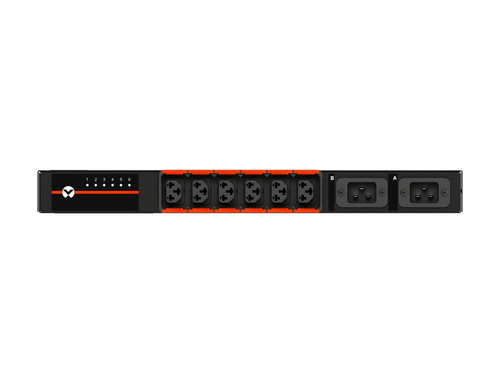

Vertiv Geist AUS5M1R5-06CF17-2C20C20A900-D, Monitored, Switched, 0U, Single-phase, Horizontal, Black, LCD
Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | VA5U21A0 |
| Our part no. | CQ48019 |
| Category | Power & UPS › PDUs |
| Weight | 0 kg |
| Design | |
| PDU types | Monitored, Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| Features | |
| LED indicators | Yes |
| Cable length | 3 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Power | |
| Nominal input voltage | 100-120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Load capacity | 230 VA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 457 mm |
| Height | 44 mm |
| Packaging data | |
| Package weight | 5.44 kg |
