Description

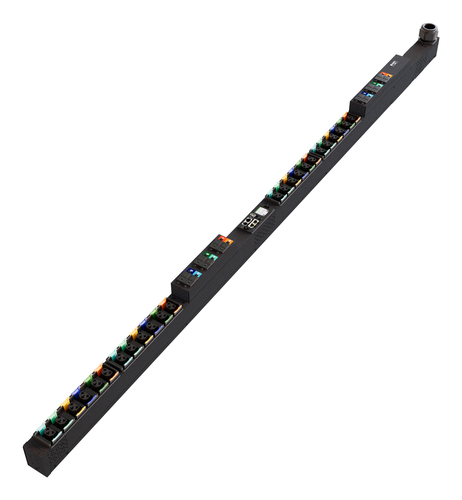

Vertiv PowerIT VP7U60A3 Switched Outlet Level Monitoring HD rPDU, Vertical, Three Phase, 24 Combination C13/C19 Outlets, 60/63A, 240/415V WYE, 0U, Switched, 0U, Three-phase, Vertical, Black, 24 AC outlet(s)
The Vertiv PowerIT Switched Outlet Level Monitored High Density Rack Power Distribution Unit (rPDU) VP7U60A3 is an upgradeable, 60/63A, 240/415V WYE, 0U, vertical rPDU with input monitoring and outlet level monitoring and switching. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also has a 3P+N+E (IP44) plug providing 43.4kW of power capacity. This model allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | VP7U60A3 |
| Our part no. | CQ57355 |
| Category | Power & UPS › PDUs |
| Weight | 0 kg |
| Design | |
| PDU types | Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | Type E / Type F |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| USB ports quantity | 1 |
| Features | |
| Cable length | 3.048 m |
| Management features | |
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
| Power | |
| Nominal input voltage | 240 - 415 V |
| Maximum current | 63 A |
| Output voltage | 240 V |
| Number of phases | 3 |
| Power protection features | Over current |
| Maximum power | 43400 W |
| Certificates | |
| Compliance certificates | China RoHS, RoHS |
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
| Weight & dimensions | |
| Width | 435 mm |
| Depth | 305 mm |
| Height | 88 mm |
| Weight | 9.98 kg |
| Weight (imperial) | 9.98 kg (22 lbs) |
| Packaging data | |
| Package weight | 9.98 kg |
| Package width | 279 mm |
| Package depth | 2209.8 mm |
| Package height | 178 mm |
| Logistics data | |
| Country of origin | United States |
| Quantity per pack | 1 pc(s) |
