Description

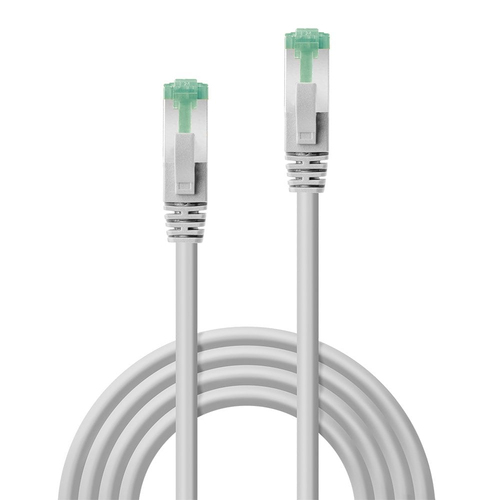

Lindy 0.3m Cat.6A S/FTP GRS TPE Cable, Grey, 0.3 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Grey

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 Gigabit Ethernet (10GBaseT). The TPE Jacket is a more flexible alternative than PVC cables with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material and easy to install. Each cable is packaged in recycled material, supporting a greener planet and reducing our carbon footprint.

This GRS certified ecological patch cord comes from the reuse of recycled raw materials and has received GRS (Global Recycled Standard) certification. With more than 50% of the weight of the patch cord made of recycled materials. The cord sheath and the pair insulation are made with quality recycled materials, these cables fulfil strict GRS certification criteria.

Cat.6A cable, offers enhanced shielding to reduce interference and ensure optimal performance, especially in environments with high electromagnetic interference (EMI). The cable's shielding is achieved using an overall braid as well as a foil shield on each of the twisted pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a recycled polybag utilising 100% GRS certified recycled materials.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m.

Specifications

BrandLINDY
Manufacturer part no.47915
Our part no.CQ63041
CategoryCables & Adapters › Specialist Cables
Weight0 kg
Features
Product colourGrey
Cable length0.3 m
Cable standardCat6a
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingNickel/Gold
Connector shieldingYes
Connector shield materialAluminium
Jacket materialThermoplastic elastomer (TPE)
Cable shapeRound
Conductor materialCopper
Connector housing materialPolycarbonate (PC)
Cabling technology10GBase-T
Ethernet interface type10 Gigabit Ethernet
AWG wire size27
Data transfer rate10 Mbit/s
Frequency500 MHz
Bend radius (min)7.4 cm
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C
Sustainability
Doesn't containHalogen
Certificates
Compliance certificatesREACH, RoHS, UL
CertificationRoHS, REACH, UL, California Proposition 65
Weight & dimensions
Width11.6 mm
Depth22.8 mm
Height8.3 mm
Outer diameter5.8 mm
Packaging content
Quantity per pack1 pc(s)
ManualYes
Packaging data
Package typePolybag
Logistics data
Warranty period10 year(s)
Technical details
Sustainability complianceYes
