Description

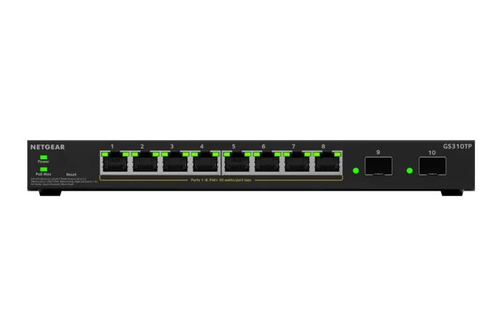

NETGEAR GS310TPv2, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Desktop
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS310TP-200EUS |
| Our part no. | CQ73647 |
| EAN | 0606449175929 |
| Category | Networking › Unmanaged Switches |
| Weight | 1.4 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) ingress | 100 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, EAP, HTTPS, SSL/TLS |
| Loop protection | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Password protection | Yes |
| Authentication type | HWTACACS+, IEEE 802.1x |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Design | |
| Rack mounting | No |
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 500 MHz |
| Memory type | DDR-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Power | |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 55 W |
| Other features | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 236 mm |
| Depth | 101 mm |
| Height | 30 mm |
| Weight | 610 g |
| Packaging content | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Technical details | |
| Shipping (inner) case height | 30.9 cm |
| Shipping (inner) case width | 35 cm |
| Shipping (inner) case length | 27.4 cm |
| Shipping (inner) case net weight | 9.49 kg |
| Products per shipping (inner) case | 6 pc(s) |
