Description

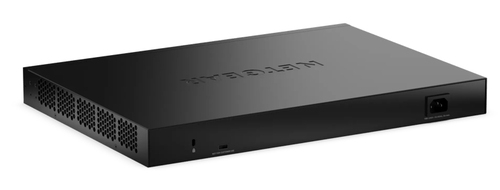

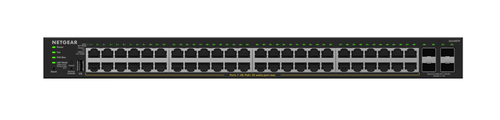

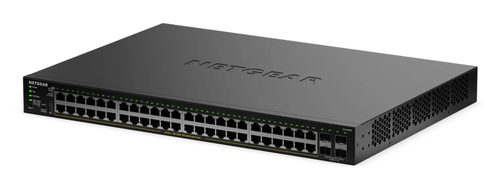

NETGEAR GS348TPv2, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS348TP-200EUS |
| Our part no. | CQ73730 |
| EAN | 0606449175974 |
| Category | Networking › Unmanaged Switches |
| Weight | 6 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Voice VLAN |
| Number of VLANs | 256 |
| Data transmission | |
| Switching capacity | 104 Gbit/s |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Memory type | RAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Noise level | 36.3 dB |
| Power | |
| Power source | PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 380 W |
| Other features | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 316 mm |
| Height | 43 mm |
| Weight | 4.05 kg |
| Packaging content | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Technical details | |
| Shipping (inner) case height | 43.2 cm |
| Shipping (inner) case width | 56.7 cm |
| Shipping (inner) case length | 24.1 cm |
| Shipping (inner) case net weight | 13.3 kg |
| Products per shipping (inner) case | 2 pc(s) |
