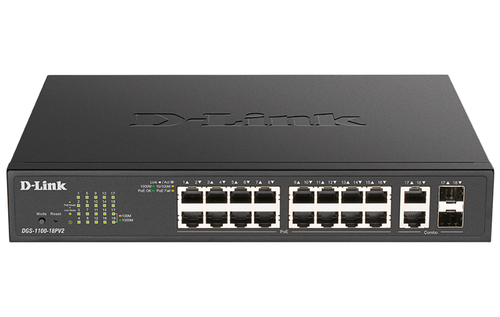

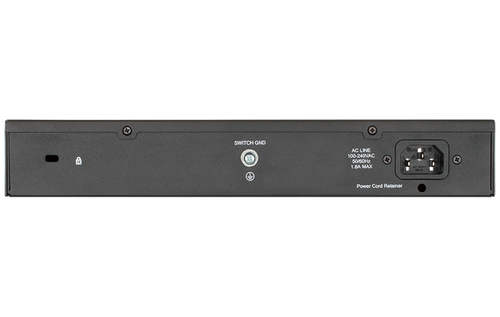

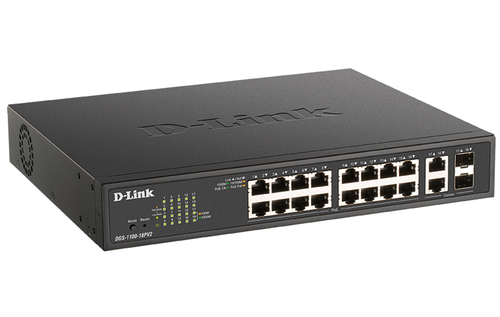

D-Link DGS-1100-18PV2, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Powerful Switching for your Business The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

Green Technology D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

PD Alive Actively Mitigates Downtime Round-the-clock surveillance footage is vital. If you have Cameras attached to your network, you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the Switch can automatically reset them and get them back online. No need to turn them on and off again in the middle of the night.

Specifications

BrandD-LINK
Manufacturer part no.DGS-1100-18PV2
Our part no.CQ78258
EAN0790069453366
CategoryNetworking › Managed Switches
Weight2.6 kg
Management features
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2
Network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T
Full duplexYes
Half duplexYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
VLAN supportYes
Number of VLANs4094
Data transmission
Switching capacity36 Gbit/s
Forwarding rate26.78 Mpps
Jumbo frames supportYes
Jumbo frames9216
Security
IGMP snoopingYes
Design
Rack mountingYes
Form factor1U
Product colourBlack
Number of fans1 fan(s)
Electromagnetic compatibilityFCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Performance
Noise level45.8 dB
Mean time between failures (MTBF)343695 h
Power
Power sourceDC/PoE
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
Total Power over Ethernet (PoE) budget130 W
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation125.2 BTU/h
Weight & dimensions
Width280 mm
Depth230 mm
Height44 mm
Weight2.1 kg
Certificates
Compliance certificatesRoHS
CertificationcUL, UL, LVD, CB, BSMI
