Description

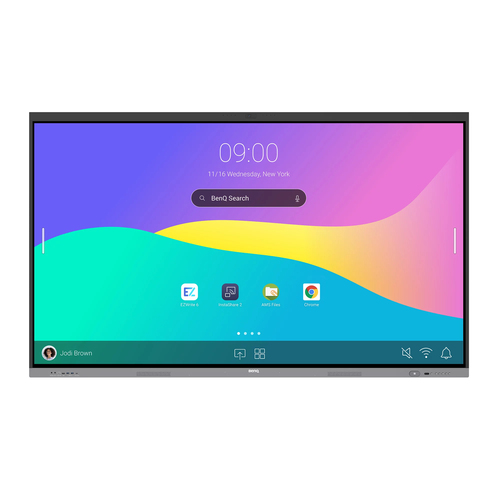

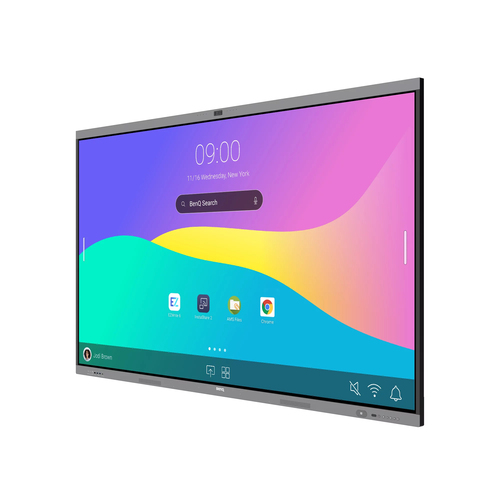

BenQ RE9804FV2, 2.49 m (98"), 1895 x 1096 mm, 500 cd/m², 3840 x 2160 pixels, 4K Ultra HD, 16:9
BenQ Board RE9804FV2 The ultimate collaboration solution The BenQ Board RE9804FV2 streamlines your meeting spaces by combining all the presentation and collaboration tools you need into one powerful smart solution.
Present Conveniently share and control your screen for engaging interactive presentations. Crisp visuals and room-filling sound help you command attention.
Meet With its built-in conferencing features and wide array of supported apps, the RE9804FV2 is compatible with any UCaaS solution.
Ideate Use the web or your preferred apps with a flexible, feature-rich whiteboard that allows you to explore and refine your ideas.
Co-create The smart board’s expandable canvas, 40 touch points, and session saving options give your teams unlimited space to collaborate freely.
All-in-one meeting room solution Designed for in-person and hybrid meetings, the BenQ Board RE9804FV2 is the ideal BYOM device. With its built-in Android 14 system, 48MP camera, speaker, and microphones, you can instantly host or join meetings using any video conferencing or UCaaS solution.
Certified Google EDLA With Google EDLA (Enterprise Device Licensing Agreement) certification, the RE9804FV2 gives you access to an expansive library of corporate apps as well as official Google tools and services that allow you to work directly from the board.
Every person seen and heard The advanced video and audio system ensures clear, secure meetings with auto-framing, voice tracking, up to a 12m mic pickup range, 48MP resolution, and privacy cover.
Expand your computing power Plug in a Windows slot-in PC to use specialized apps directly from your BenQ Board.
Efficiently manage your boards and accounts BenQ Boards come with a complete suite of device and account management tools for administrators. Conveniently register new devices, configure settings, and regulate user access from the cloud.
Onboarding Quickly register all your boards just by uploading a CSV file or scanning their QR or barcodes.
Policy management Conveniently create and deploy device, security, and app policies for all your boards on one console.
Usage analytics Generate comprehensive device analytics for data-driven IT management decisions.
Built for security The RE9804FV2 has holistic data privacy and security options that help protect your organization against potential threats.
Secure SSO Account separation and single sign-on ensure that user preferences, files, as well as browsing and app data can only be accessed by their rightful owners.
User list syncing Directory service syncing ensures that only registered users can access the boards.
*BenQ Boards support Microsoft Entra ID, Google Workspace, and other LDAP or SAML-based identity providers.
Update management Official and timely firmware and app updates from Google, BenQ, and partner developers provide stability and keep the boards protected against vulnerabilities.
One-tap login NFC login protects privacy by eliminating the need to manually enter user credentials every time.
Application control Install and update apps remotely while blocking the use of unauthorized apps on all boards.
Antimalware measures Google Play Protect and Safe Browsing help scan for malware and other threats.
A greener solution for sustainable collaboration The RE9804FV2 is designed with environmental sustainability and user health in mind.
Energy savings Enable any of the BenQ Board’s multiple power-saving features, like the ENERGY STAR® eco mode, to lower your energy consumption.
Reduced carbon footprint Optimized manufacturing and shipping processes ensure lower CO2 emissions for the BenQ Board.
Certified for energy efficiency Rated by ENERGY STAR® for superior power consumption performance, the BenQ Board RE9804FV2 delivers proven energy efficiency without compromising functionality.
Health-forward features The BenQ Board’s health-centric features help foster a healthier work environment.
Eye protection Low blue light and flicker-free technologies coupled with an anti-glare screen help prevent eye strain.
IP5X dust protection Compliant with IEC standard 60529, the RE9804FV2 ensures consistent operations in dust-prone settings.
Specifications
| Brand | BENQ |
|---|---|
| Manufacturer part no. | 9H.FAKTK.DE8 |
| Our part no. | CQ83558 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 134.6 kg |
| Display | |
| Display diagonal | 2.49 m (98") |
| Display brightness | 500 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Anti-glare screen | Yes |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 30000:1 |
| Response time | 8 ms |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Infrared |
| Number of simultaneous touchpoints | 40 |
| Touch system response time | 5 ms |
| Colour gamut | 68% |
| Working area | 1895 x 1096 mm |
| Low Blue Light technology | Yes |
| Hardness | 9H |
| Computer system | |
| Operating system installed | Android |
| Operating system version | 13 |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex A73 + ARM Cortex A53 |
| Processor cores | 8 |
| Maximum internal memory | 64 GB |
| RAM capacity | 8 GB |
| Graphics card | Mali-G52 MP8 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 40 W |
| Built-in microphone | Yes |
| Number of microphone arrays | 8 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Near Field Communication (NFC) | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B Touch ports quantity | 2 |
| HDMI ports quantity | 4 |
| USB Type-C ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI output ports quantity | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Line-in | Yes |
| Line-out | Yes |
| OPS slot | 1 |
| S/PDIF out port | Yes |
| RS-232 ports | 1 |
| Ergonomics | |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Mean time between failures (MTBF) | 50000 h |
| Performance | |
| Ambient light sensor | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Operating hours (hours/days) | 18/7 |
| Power | |
| Power consumption (typical) | 122.7 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 2230.8 mm |
| Depth | 103.1 mm |
| Height | 1335.9 mm |
| Weight | 104.8 kg |
| Packaging data | |
| Package width | 2095 mm |
| Package depth | 1265 mm |
| Package height | 185 mm |
| Package weight | 134.7 kg |
| Packaging content | |
| Cables included | HDMI, USB, USB Type-C, VGA |
| Remote control included | Yes |
| Mounting kit | Yes |
| Stylus included | Yes |
