Description

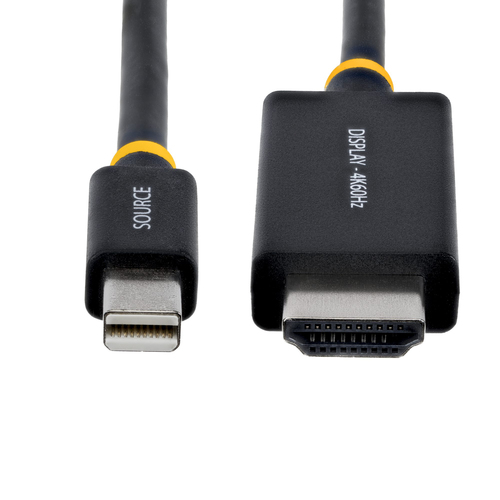

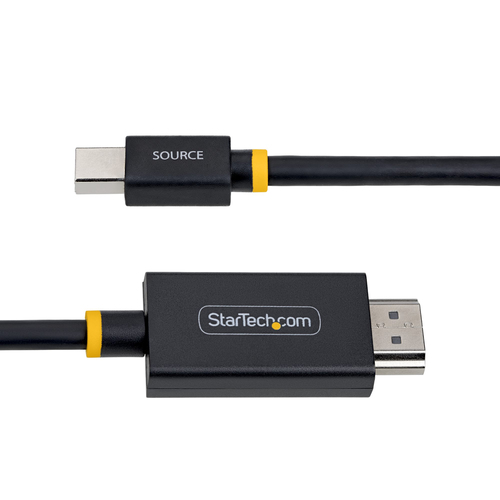

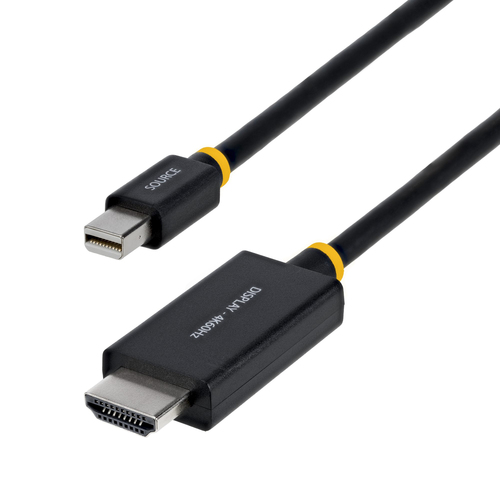

StarTech.com 1m (3ft) Mini DisplayPort to HDMI Adapter Cable, 4K 60Hz with HBR3/HDCP 2.3/DPCP, MDP to HDMI 2.0, Active Video Converter, Mini DisplayPort Desktop to HDMI Monitor, 1 m, Mini DisplayPort, HDMI Type A (Standard), Male, Male, Straight
Connect a Mini DisplayPort source to an HDMI display with support for up to 4K 60Hz UHD video
Connect a Mini DisplayPort-enabled desktop to an HDMI UHD monitor, using this 3.3-foot (1-meter) Active Mini DisplayPort to HDMI Adapter Cable.
Seamless 4K 60Hz UHD Video
This active Mini DisplayPort to HDMI adapter cable supports up to 4K 60Hz UHD over HDMI 2.0 with 7.1ch audio, HDCP 2.3 and DPCP content protection. Ensure sharp picture quality with 32Gbps HBR3 bandwidth from the Mini DisplayPort input, delivering full 18Gbps HDMI 2.0 output for consistent UHD video performance.
Universal Compatibility
The mDP To HDMI adapter cord is ideal for workstations and GPUs equipped with a Mini DisplayPort 1.2, 1.4, or 2.1 video ports and HDMI 2.0 displays. An active chipset ensures optimal signaling and universal compatibility across standard mDP and mDP++ ports. Connect a Mini DisplayPort 1.2 source to enable HDMI 2.0 4K 60Hz 4:4:4 chroma, 8-bit color depth output.
Designed and Built for IT Professionals
The integrated adapter cable design minimizes signal loss, reduces clutter, and eliminates the need for external power. This Mini DisplayPort to HDMI cable helps maintain signal integrity and reduce electromagnetic interference (EMI) for reliable long-term performance. Compatible with systems from Dell, HP, Lenovo, and other desktop manufacturers, and backward compatible with 4K 30Hz, 1080p, and lower resolutions.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 1M-MDP-HDMI2-4K60 |
| Our part no. | CQ92399 |
| EAN | 0065030926515 |
| Category | Cables & Adapters › Display Cables |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 1 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDMI version | 2.0 |
| HDCP | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1440, 3072 x 1728, 3200 x 1800, 3840 x 2160 |
| Bandwidth | 32000 MB/s |
| Product colour | Black |
| Chipset | Parade PS176 |
| Jacket material | Thermoplastic elastomer (TPE) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 128 mm |
| Package height | 15 mm |
| Package weight | 46 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 140 pc(s) |
