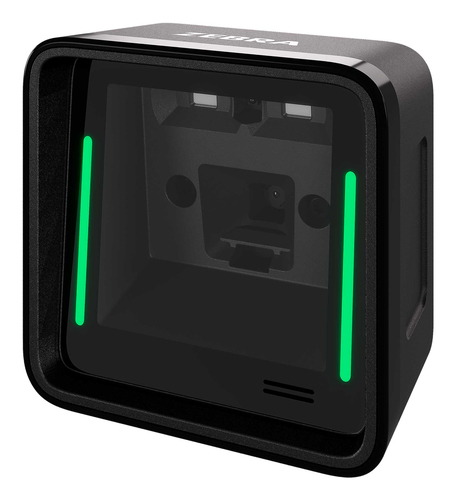

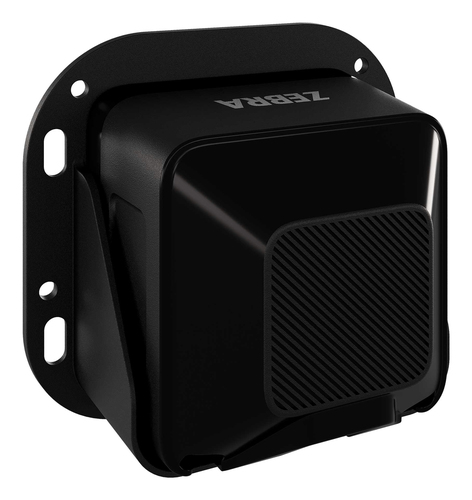

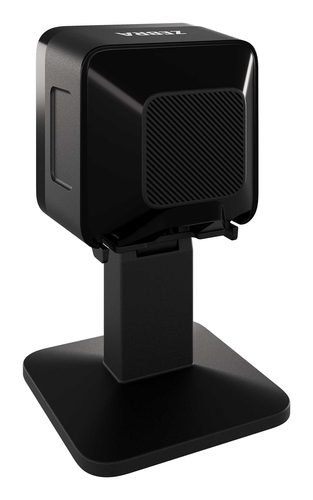

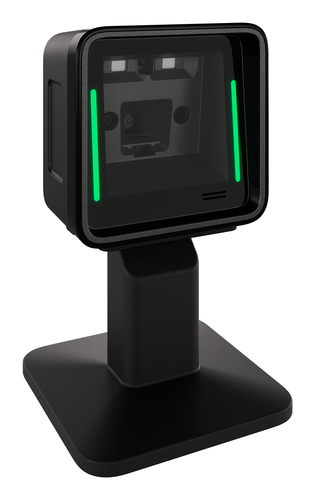

Zebra SP2002 Fixed bar code reader 1D/2D CMOS Black

Description

Zebra SP2002, Fixed bar code reader, 1D/2D, CMOS, Code 39, Code 128, Code 93, Codabar, Code 11, MSI-Plessey, EAN-13, UPC-A, Korean 3 of 5, GS1..., QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Composite Codes, Aztec Code, MaxiCode,..., 1280 x 800 pixels

Reliable checkout performance at a price that fits your budget. Ideal for small retailers, Quick Serve Restaurants (QSRs), convenience stores, and speciality shops

Specifications

Scanning
Brand	ZEBRA
Manufacturer part no.	SP2002-SR00004ZZWW
Our part no.	CQ93103
Category	Barcode Scanners › Handheld Scanners
Weight	0.1 kg
Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	CMOS
Linear (1D) barcodes supported	Code 39, Code 128, Code 93, Codabar, Code 11, MSI-Plessey, EAN-13, UPC-A, Korean 3 of 5, GS1 DataBar, Code 32
2D (matrix & stacked) barcodes supported	QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Composite Codes, Aztec Code, MaxiCode, SecurPharm, Postal Codes, GS1 Digital Link
Optical sensor resolution (W x H)	1280 x 800 pixels
Working distance range	64 - 198 mm
Horizontal field of view	62°
Vertical field of view	41°
Pitch reading angle	-60 - 60°
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	RS-232
Performance
International Protection (IP) code	IP52
Protection features	Drop resistant, Electrostatic Discharge (ESD) protection, Impact resistant, Shock resistant
LED indicators	Power
Print contrast	20%
Product colour	Black
Power
Power source type	USB, RS-232
Input voltage	4.75 - 5.25 V
Weight & dimensions
Width	75 mm
Depth	57 mm
Height	75 mm
Weight	110 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Drop resistance	1.5 m
Technical details
Warranty period	3 year(s)
Compliance certificates	IECEx, CSA, UL
