Description
StarTech.com Heavy-Duty Articulating TV Wall Mount for up to 100-inch and 187.4lb/85kg Flat Screens, VESA 800x500, Low-Profile Bracket, TAA-Compliant, 200 x 200 mm, 800 x 500 mm, -12 - 2°, -60 - 60°, Aluminium, Steel, Black
Mount a TV to a wall using this space-saving, low-profile mount with premium finish
Create a TV mounting solution with this articulating wall mount that supports up to 100-inch and 187.4lb (85kg) televisions. Use in conference rooms, customer-facing applications, and collaborative spaces where durability, precision, and presentation matter.
Heavy-Duty Articulating Television Mount

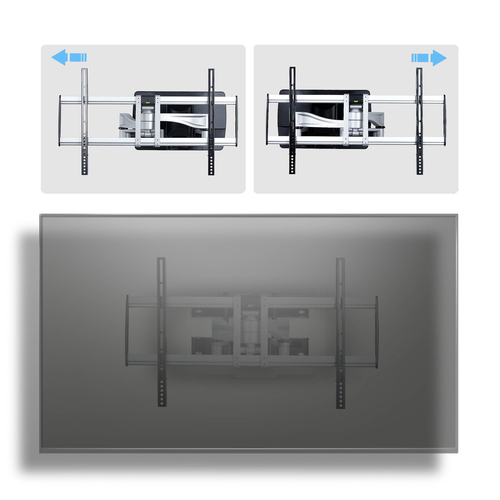

The mount collapses to just 4.1in (10.5cm) from the wall and extends to 21.6 in (55 cm) for easy access behind the TV. Dual-stud mounting (16in spacing) and dual-arm design ensure safe mounting and smooth motion when positioning your display. For perfect screen positioning, you can tilt (+2°/-12°) and swivel (+/-60°) for post-install adjustments to achieve the best viewing angle. The flat screen bracket is TAA-compliant to meet procurement requirements.
Versatile Mounting with a Premium Finish
This VESA-compatible wall mount supports patterns up to 800x500mm and includes hardware, spacers, and a wall template for clean installation. It secures to wood studs, brick, or concrete surfaces, offering flexibility across environments. Integrated cable channels keep wires organized, while the silver steel and aluminum frame with decorative covers creates a refined, professional look from any angle.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 100AP1-TV-WALL-MOUNT |
| Our part no. | CQ96151 |
| EAN | 0065030920056 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 15.8 kg |
| Mounting | |
| Maximum weight capacity | 85 kg |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 85 kg |
| Maximum screen size | 2.54 m (100") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 500 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,500 x 300,600 x 300,600 x 400,800 x 400,800 x 500 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -12 - 2° |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Cable management | Yes |
| Distance to the wall (max) | 55 cm |
| Distance to the wall (min) | 10.5 cm |
| Design | |
| Product colour | Black |
| Housing material | Aluminium, Steel |
| Anti-theft function | No |
| Technical details | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Packaging content | |
| Wrench included | Yes |
| Wrench type | Hexagonal wrench |
| Number of washers included | 4 |
| Screws included | Yes |
| Number of screws | 42 |
| User guide | Yes |
| Mounting brackets included | Yes |
| Weight & dimensions | |
| Width | 525 mm |
| Depth | 870 mm |
| Height | 550 mm |
| Weight | 14.2 kg |
| Packaging data | |
| Package width | 945 mm |
| Package depth | 386 mm |
| Package height | 180 mm |
| Package weight | 16.5 kg |
| Logistics data | |
| Master (outer) case width | 945 mm |
| Master (outer) case length | 386 mm |
| Master (outer) case height | 180 mm |
| Products per master (outer) case | 1 pc(s) |
