Description

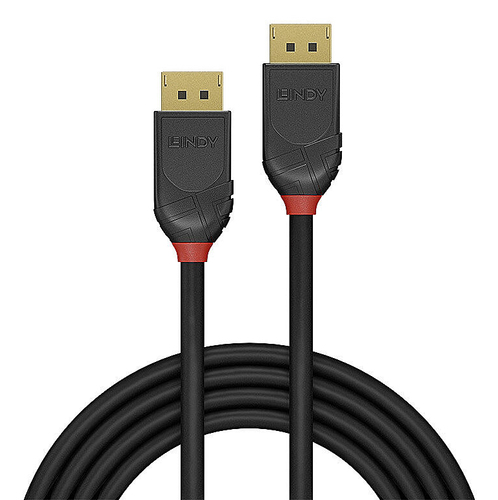

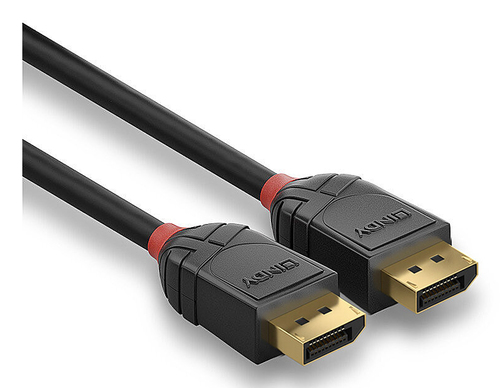

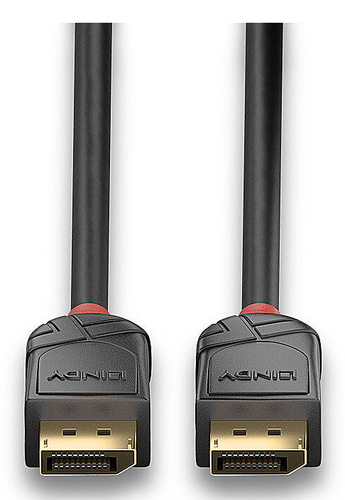

Lindy 36516, 1 m, DisplayPort, DisplayPort, Male, Male, 16360 x 8640 pixels
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort 2.1 cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
UHD resolutions up to 16K 15360x8640@60Hz 4:4:4 10-Bit With DSC (Display Screen Compression). DSC is a visually lossless compression standard that allows higher resolutions and refresh rates by reducing the data bandwidth required for transmission. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD.
Black Line DisplayPort cables feature triple shielded construction with 28AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36516 |
| Our part no. | CR01869 |
| EAN | 4002888365161 |
| Category | Cables & Adapters › Display Cables |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 2.1 |
| Maximum resolution | 16360 x 8640 pixels |
| Maximum refresh rate | 60 Hz |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 28 |
| Bandwidth | 54000 MB/s |
| Cable type | Round cable |
| Nominal attenuation | 100 MHz - 450 MHz < 5.1 dB 450 MHz - 8100 MHz < 33.28 dB 8100 MHz - 13500 MHz < 38.0 dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Compliance certificates | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Connector 1 dimensions (WxDxH) | 20.7 x 42.6 x 13 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
