Description

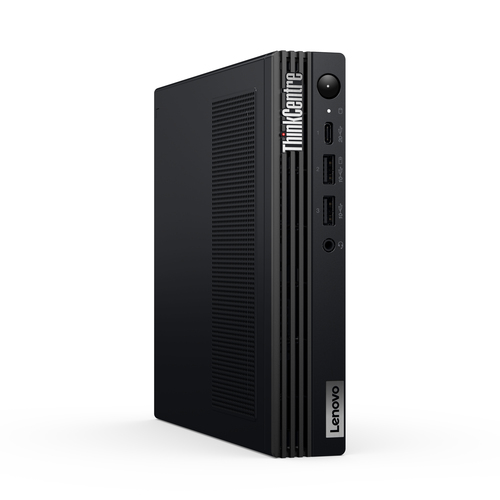

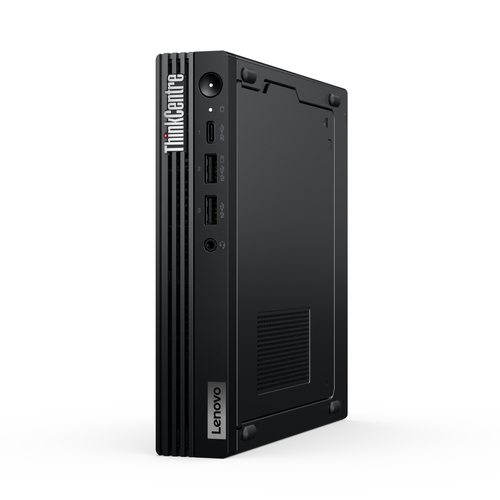

Lenovo ThinkCentre M90q Gen 5, 1.3 GHz, Intel® Core™ i7, i7-14700T, 16 GB, 512 GB, Windows 11 Pro
- Multilevel security & manageability with up to Intel vPro® Enterprise - Removable dust shield to assist with upkeep & extend the lifecycle of the system - Highly configurable compact PC with customizable expansion slots - Ideal for healthcare, retail, & finance with support for up to 4 monitors
Specifications
| Brand | LENOVO |
|---|---|
| Manufacturer part no. | 12TT000KUK |
| Our part no. | CR11531 |
| EAN | 0199273600878 |
| Category | Computers & Servers › Desktop PCs |
| Weight | 3.7 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700T |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5 GHz |
| Processor frequency | 1.3 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Self-Encrypting Drive (SED) | Yes |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Performance | |
| Motherboard chipset | Intel Q670 |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | Gigabit Ethernet |

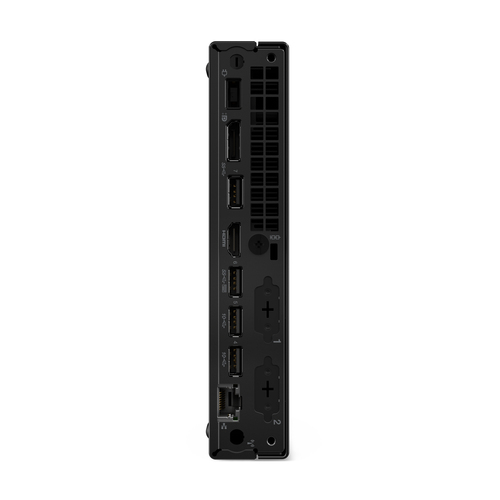

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Power | |
| Power supply | 135 W |
| Design | |
| Chassis type | Mini PC |
| Volume | 1 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Software | |
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
| Intel® Smart Cache | Yes |
| Audio | |
| Audio chip | Realtek ALC233 |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Weight & dimensions | |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
| Packaging content | |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Certificates | |
| Certification | TCO,RoHS,ErP |
| Keyboard | |
| Keyboard connectivity | Wired |
