Description

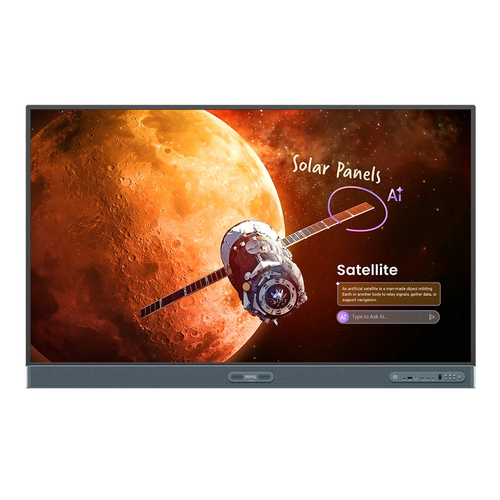

BenQ RP6505, 165.1 cm (65"), 1428.5 x 803.5 mm, 450 cd/m², 3840 x 2160 pixels, 4K Ultra HD, IPS
The BenQ Board Pro RP05 is a Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, Ultra Precision IR touch, top-of-the line hardware and software, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
Specifications
| Brand | BENQ |
|---|---|
| Manufacturer part no. | 9H.FC1TC.DE1 |
| Our part no. | CR31013 |
| EAN | 4718755096051 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 53 kg |
| Display | |
| Display diagonal | 165.1 cm (65") |
| Display brightness | 450 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Anti-glare screen | Yes |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1500:1 |
| Contrast ratio (dynamic) | 50000:1 |
| Response time | 8 ms |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Infrared |
| Number of simultaneous touchpoints | 50 |
| Touch system response time | 2.5 ms |
| Colour gamut | 72% |
| Working area | 1428.5 x 803.5 mm |
| Surface material | Tempered glass |
| Hardness | 9H |
| Computer system | |
| Operating system installed | Android |
| Operating system version | 15 |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex A78 + ARM Cortex A55 |
| Processor cores | 8 |
| Maximum internal memory | 128 GB |
| RAM capacity | 16 GB |
| Graphics card family | ARM |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 25 W |
| Built-in subwoofer | Yes |
| Subwoofer RMS power | 20 W |
| Built-in microphone | Yes |
| Number of microphone arrays | 8 |
| Projector | |
| Built-in projector | No |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Near Field Communication (NFC) | Yes |
| Ports & interfaces | |
| Interface | HDMI |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| HDMI ports quantity | 4 |
| USB Type-C ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI output ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| DisplayPort version | 1.2a |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Line-in | Yes |
| Line-out | Yes |
| OPS slot | 1 |
| S/PDIF out port | Yes |
| Microphone connectivity | 3.5 mm |
| Headphone connectivity | 3.5 mm |
| RS-232 ports | 1 |
| Ergonomics | |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Performance | |
| Temperature sensor | Yes |
| Power | |
| Power consumption (typical) | 77.4 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 60% |
| Weight & dimensions | |
| Width | 1488.4 mm |
| Depth | 130 mm |
| Height | 937.3 mm |
| Packaging data | |
| Package width | 1628 mm |
| Package depth | 208 mm |
| Package height | 1024 mm |
| Package weight | 34.5 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Cables included | HDMI, USB Type-C |
| Remote control included | Yes |
| Mounting kit | Yes |
| Stylus included | Yes |
| Number of stylus pens | 2 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
