i-tec Thunderbolt 4 Intelligent Dual Display Docking Station + Power Delivery 90W, Wired, Thunderbolt 4, 90 W, 3.5 mm, 10,100,1000 Mbit/s, Black

Experience a breakthrough in docking technology with a high-performance, universal docking station designed for full remote management. Thanks to its dedicated LAN port, IT administrators can control the dock from anywhere *. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station operates at full functionality even without it; the only limitation is the absence of remote management features. And best of all – Manageability works without a host connection — just power and LAN required. NOTE: The software is available for Windows computers only.

A next-generation, high-performance Thunderbolt” 4 docking station that delivers output to up to two external 4K monitors or a single 8K display. Compatible with virtually all notebooks equipped with USB-C**, USB4, or Thunderbolt” 3/4/5 ports, and supporting all major operating systems.

With multiple USB ports (including USB 3.2 Gen 2 with speeds up to 10 Gbps), a Thunderbolt” 4 port offering either 8K video or ultra-fast 40 Gbps data transfer, and a reliable, high-speed LAN connection, this docking station is the ideal solution for demanding professionals. Naturally, it also supports up to 90W power delivery to keep your notebook or tablet charged.

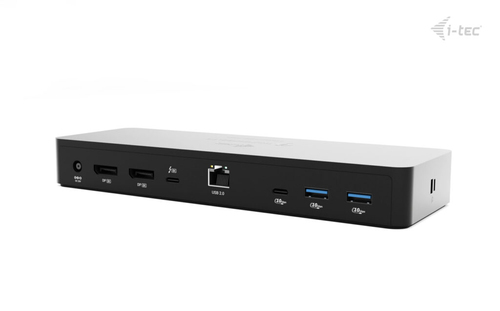

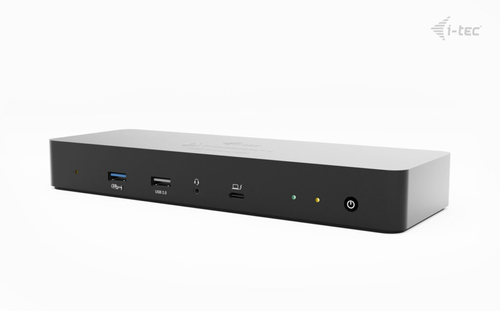

- Connect a single 8K display or up to two external monitors in resolutions up to 4K** - Power delivery up to 90 W - 2× DisplayPort and 1× Thunderbolt” 4 port available - 5× USB ports: 1× USB-A (10 Gbps, BC 1.2 fast charging), 2× USB-A (10 Gbps), 1× USB-A (2.0), and 1× USB-C (Gen 2, 10 Gbps) - Intelligent Gigabit Ethernet (RJ-45) provides reliable, high-speed connectivity with 10/100/1000 Mbps support and seamless remote management functionality - Combined audio/microphone jack - Kensington lock slot provides anti-theft protection, ideal for shared office spaces or public areas - Power switch on the docking station allows maximum energy savings - Supports Windows 10/11, macOS, iPadOS, Android, ChromeOS, and Linux (latest versions)

* Because of the way Thunderbolt” technology works, i-tec DockMate can manage the docking station itself (such as remote on/off, scheduled power saving, or firmware updates), but it cannot directly control individual ports like USB, LAN, audio or display outputs.

** Only one external monitor is supported when connected via a USB-C port.

Specifications

BrandI-TEC
Manufacturer part no.TB4INTGDUAL4KDOCPDUK
Our part no.CR41522
EAN8595611707698
CategoryDocks, Bags & Racks › Docking Stations
Weight1.1 kg
Ports & interfaces
Connectivity technologyWired
Host interfaceThunderbolt 4
USB 2.0 ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery up to90 W
DisplayPorts quantity2
DisplayPort version1.4
Thunderbolt 4 ports quantity2
Combo headphone/mic portYes
Headphone connectivity3.5 mm
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Performance
Card reader integratedNo
Data transfer rate40 Gbit/s
Maximum digital resolution7680 x 4320 pixels
Number of displays supported2
Maximum refresh rate360 Hz
Cable lock slotYes
Cable lock slot typeKensington
Product colourBlack
On/off switchYes
LED indicatorsYes
Power
Power supply135 W
Output voltage20 V
Output current6.75 A
Compatible power plug typesUK
Power cable length1.5 m
Thunderbolt 4 cable length1 m
Software
Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedAndroid, ChromeOS, iPadOS
Weight & dimensions
Width220 mm
Depth75 mm
Height30 mm
Weight295 g

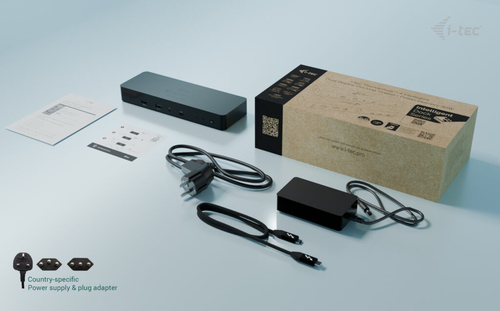

Packaging content
Cables includedDC, Power, Thunderbolt
AC adapter includedYes
ManualYes
