Description

Neomounts CL25-540WH1 Beamer ceiling mount - h 60,5-90,5 cm - easy-install - full motion, Ceiling, 35 kg, White, Steel, 605 - 905 mm, -8 - 8°

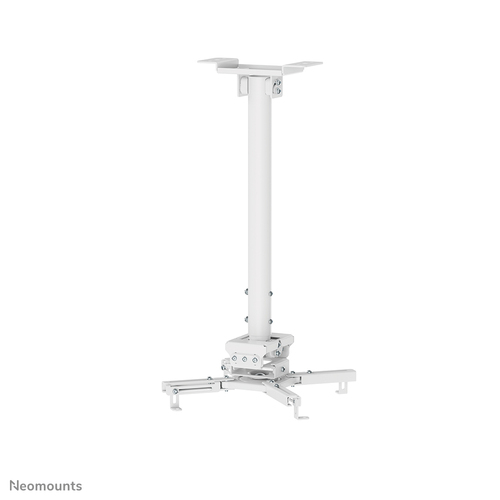

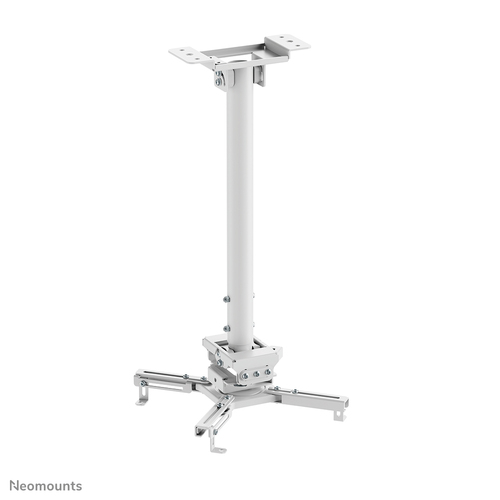

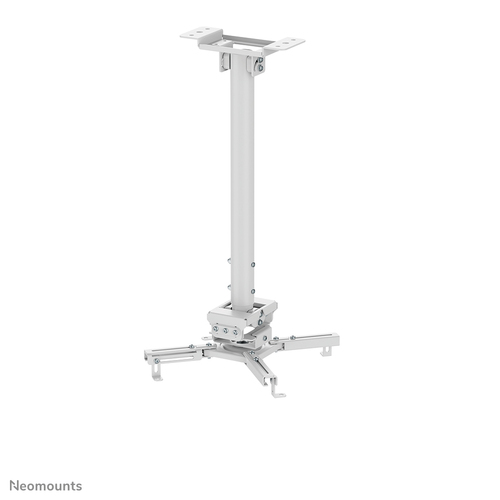

The Neomounts CL25-540WH1 is a universal projector ceiling mount. Because of the high weight capacity up to 35 kg and the various adjustment options, this projector ceiling mount is widely applicable. The CL25-540WH1 has four extendable arms and the versatile tilt (+20°, -20°), rotate (360°) and swivel (+8°, -8°) technology, provides optimal placement of the projection on any canvas, screen or wall. The support is also adjustable in height from 60,5 to 90,5 cm.

The Neomounts CL25-540WH1 is equipped with an Easy-release system, which highly eases installation; (de)installation of the projector to the projector mount can be done in an instant and by only one person. In addition, the round pole allows easy installation to a suspended ceiling. Finally, the pole of the Neomounts projector mount can be tilted on the ceiling side, so that installation against a sloped ceiling is effortless. The fixation of the mount itself is sturdy and firm, therefore vibration free.

The cable management system of the CL25-540WH1 ensures the cables are neatly concealed, because they are routed through the pole of the projector ceiling mount.

Specifications

BrandNEOMOUNTS
Manufacturer part no.CL25-540WH1
Our part no.CR42564
EAN8721246340638
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight0 kg
Performance
Mounting typeCeiling
Maximum weight capacity35 kg
Product colourWhite
Housing materialSteel
Cable managementYes
Height adjustmentYes
Height adjustment range605 - 905 mm
Swivel angle range-8 - 8°
Tilt angle range-20 - 20°
Safety lockYes
Tilt adjustmentYes
RotatingYes
SwivellingYes
Weight & dimensions
Width470 mm
Height905 mm
Depth470 mm
Weight3.56 kg
Package width592 mm
Package depth265 mm
Package height102 mm
Package weight4.38 kg
Package net weight4.6 kg
Technical details
Warranty period5 year(s)
Other features
Country of originChina
Logistics data
Products per master (outer) case4 pc(s)
Master (outer) case net weight14.2 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)64 pc(s)
Master (outer) case width610 mm
Master (outer) case length285 mm
Master (outer) case height430 mm
Master (outer) case gross weight18.4 kg
