Description

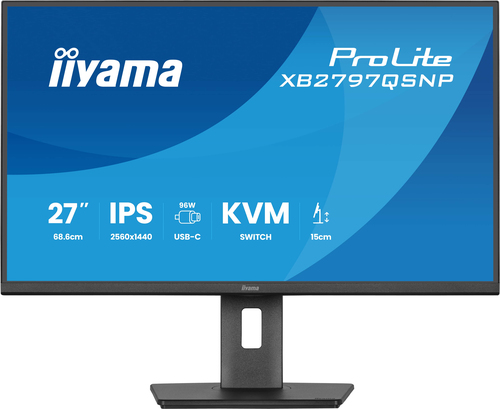

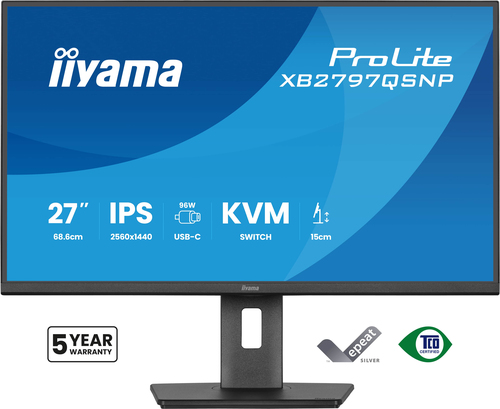

iiyama ProLite XB2797QSNP-B1, 68.6 cm (27"), 2560 x 1440 pixels, Quad HD, LCD, Black
Stay connected and reduce cable clutter with the ProLite XB2797QSNP. The integrated USB-C dock with 96W power delivery lets you transfer video, audio, data and power through a single cable, keeping your workspace clean and efficient. The RJ45 port ensures a fast, stable wired network connection without additional adapters. With the built-in KVM switch, you can control two computers using a single keyboard and mouse, making it easy to switch between systems and maintain a smooth workflow. The 27” QHD IPS panel delivers high resolution and accurate colour reproduction with wide viewing angles, supporting detailed work such as content creation, spreadsheets or design tasks. The DisplayPort output enables quick setup of a dual-monitor configuration to expand your screen space and boost productivity. The stand offers 15cm height adjustment along with tilt, swivel and pivot functions including portrait mode, so you can work comfortably in your preferred position. Tested and certified by TÜV Rheinland for Eye Comfort, the XB2797QSNP meets strict display standards to help reduce visual fatigue during extended use, supporting long-lasting focus and well-being at work. Available also without USB-C dock: XB2797QSU-B1 .
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | XB2797QSNP-B1 |
| Our part no. | CR44602 |
| EAN | 4948570125944 |
| Category | Monitors & Displays › Monitors |
| Weight | 8.1 kg |
| Display | |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 2560 x 1440 pixels |
| HD type | Quad HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| Touchscreen | No |
| Display brightness (typical) | 350 cd/m² |
| Response time (MPRT) | 1 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.233 x 0.233 mm |
| Horizontal scan range | 30 - 112 kHz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display diagonal (metric) | 68.5 cm |
| sRGB coverage (typical) | 100% |
| NTSC coverage (typical) | 72% |
| Performance | |
| AMD FreeSync | Yes |
| VESA Adaptive Sync support | Yes |
| Flicker-free technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of downstream ports | 4 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort out quantity | 1 |
| Headphone out | Yes |
| Built-in KVM switch | Yes |
| HDCP | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |

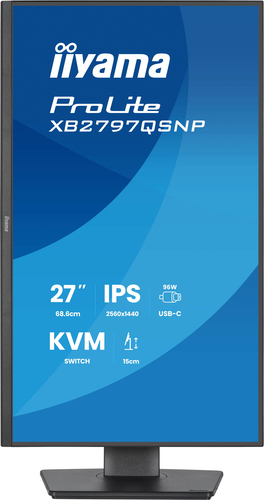

| Pivot | Yes |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Tilt adjustment | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Power consumption (typical) | 21 W |
| Power consumption (standby) | 21 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 613 mm |
| Depth (with stand) | 209.5 mm |
| Height (with stand) | 547.5 mm |
| Weight (with stand) | 5.9 kg |
| Height (without stand) | 403.5 mm |
| Packaging data | |
| Package width | 691 mm |
| Package depth | 142 mm |
| Package height | 447 mm |
| Package weight | 8 kg |
| USB cable length | 1.5 m |
| Packaging content | |
| Cables included | AC, USB, HDMI, USB Type-C |
| HDMI cable length | 1.5 m |
| Power cable length | 1.5 m |
| Sustainability | |
| Sustainability certificates | ErP, TCO |
| Other features | |
| User controls | picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), Extra 2 (shortcut key, Mac address, FW version), KVM (HDMI, DisplayPort, USB-C), input select, audio settings (volume, mute), reset (reset all?) |
| Packaging content | quick start guide, safety guide |
| Weight | 5.9 kg |
| Width | 613 mm |
| Depth | 209.5 mm |
| Control panel | Joystick: Power/Menu (Centre), Up/Signal Select, Down, Left/Shortcut, Right/Volume |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Manufacturer warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Native refresh rate | 60 Hz |
