Description

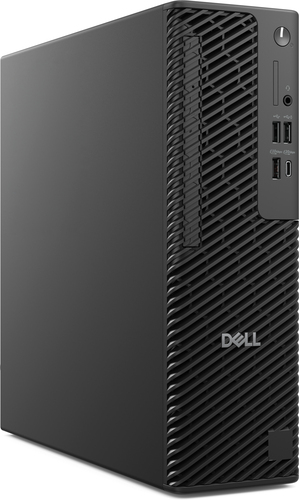

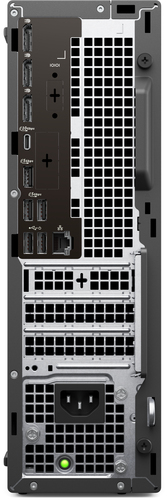

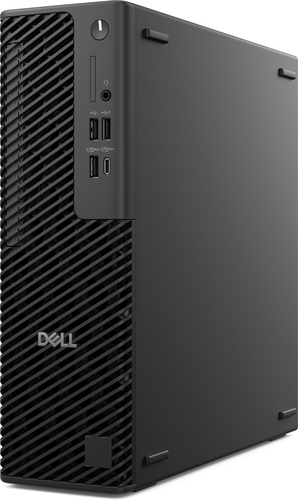

DELL Pro Max FCS1250, Intel Core Ultra 7, 265, 32 GB, 1 TB, Windows 11 Pro, 64-bit
Experience unparalleled speed with incredibly fast CPU and GPU performance, now in an 8.5L design.
Specifications
| Brand | DELL EMC |
|---|---|
| Manufacturer part no. | 20XWG |
| Our part no. | CR53609 |
| EAN | 5397321003458 |
| Category | Computers & Servers › Desktop PCs |
| Weight | 4.8 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 265 |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 65 W |
| Maximum turbo power | 182 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 33 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x SO-DIMM |
| Non-ECC | Yes |
| Memory data transfer rate | 5600 MT/s |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Self-Encrypting Drive (SED) | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Graphics card Mini DisplayPort ports quantity | 4 |
| Performance | |
| Motherboard chipset | Intel W880 |
| Trusted Platform Module (TPM) | Yes |
| Product type | PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I219-LM |
| Wi-Fi | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Number of SATA III connectors | 2 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Power | |
| Power supply | 360 W |
| Power supply input voltage | 90 - 264 V |
| Power supply input frequency | 47/63 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
| Design | |
| Chassis type | Slim PC |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Intel® vPro™ Platform Eligibility | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Display | |
| Display included | No |
| Audio | |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 293 mm |
| Height | 303.5 mm |
| Weight | 6.11 kg |
| Packaging content | |
| Mouse included on selected markets | Dell Wired Mouse - MS116 - Black |
| Keyboard included on selected markets | Dell Wired Keyboard - KB216 - German (QWERTZ) - Black |
| Cables included | AC |
| Box contents | Power Cord C13 (UK/MY/SG/HK/Bangladesh/Brunei/Pakistan/Sri Lanka/Maldives) |
| Sustainability | |
| Doesn't contain | PVC/BFR |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 202 |
| Carbon emissions, manufacturing (kg of CO2e) | 95.75 |
| Carbon emissions, logistics (kg of CO2e) | 10.1 |
| Carbon emissions, energy usage (kg of CO2e) | 92.72 |
| Carbon emissions, end-of-life (kg of CO2e) | 3.64 |
| PAIA version | GaBi version 1, 2024 |
