Description

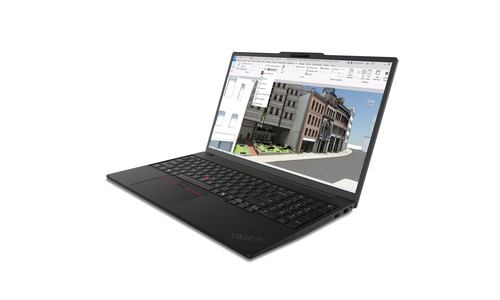

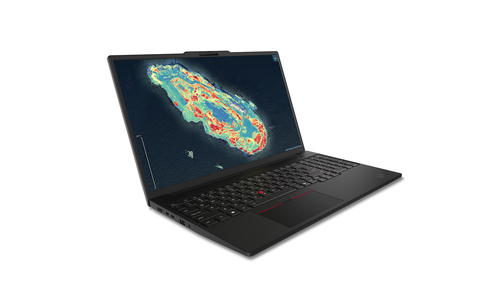

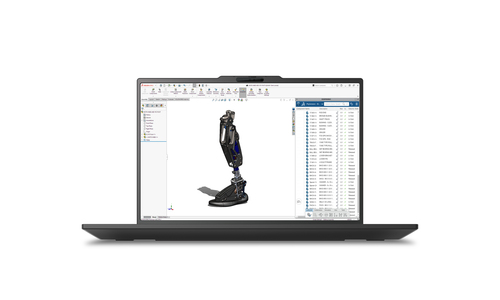

Lenovo ThinkPad P16s Gen 5 (Intel) Copilot+ PC, Intel Core Ultra X9, 40.6 cm (16"), 1920 x 1200 pixels, 32 GB, 1 TB, Windows 11 Pro
Unlock efficiency and innovation with Copilot+ PCs. Improve operational efficiency with Copilot+ PCs.- 16" lightweight mobile workstation for engineers, designers & other professionals - Ultimate performance with Intel® Core™ Ultra Series 3 processor & advanced graphics - Adaptable with scalable memory & storage options for responsive workflows
Specifications
| Brand | LENOVO |
|---|---|
| Manufacturer part no. | 21XE002XUK |
| Our part no. | CR83993 |
| EAN | 0199276523020 |
| Category | Computers & Servers › Mobile Workstations |
| Weight | 3.9 kg |
| Design | |
| Product type | Mobile workstation |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Display back cover material | Aluminium |
| Stylus pen support | No |
| Display | |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 400 cd/m² |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Maximum refresh rate | 60 Hz |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra X9 |
| Processor generation | Intel® Core™ Ultra (Series 3) |
| Processor model | 388H |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor socket | FCBGA2540 |
| Processor base power | 25 W |
| Maximum turbo power | 80 W |
| Neural processor unit (NPU) | |
| Copilot+ PC | Yes |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 50 TOPs |
| GPU performance up to | 122 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 7467 MHz |
| Memory form factor | LPCAMM2 |
| Maximum internal memory | 96 GB |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Self-Encrypting Drive (SED) | Yes |
| Optical drive type | No |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc B390 |
| Graphics card | Arc Graphics B390 |
| Audio | |
| Audio chip | Realtek ALC722-CG |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 7 BE211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Near Field Communication (NFC) | No |
| WWAN | Not installed |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| Performance | |
| Motherboard chipset | Intel SoC |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Copilot key | Yes |
| Software | |
| Operating system language | US English, ENG-UK |
| Microsoft Copilot | Yes |
| Operating system installed | Windows 11 Pro |
| Bundled software | Intel Connectivity Performance Suite + Lenovo AI Now |
| Processor special features | |
| Intel® Smart Cache | Yes |
| Battery | |
| Battery capacity | 90 Wh |
| Power | |
| AC adapter power | 100 W |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Certificates | |
| Certification | ENERGY STAR,TCO,TCO10,EPEAT Gold,RoHS |
| Weight & dimensions | |
| Width | 357.9 mm |
| Depth | 247.9 mm |
| Height (front) | 1.15 cm |
| Height (rear) | 1.81 cm |
| Weight | 1.79 kg |
| Packaging content | |
| AC adapter included | Yes |
| Stylus pen | No |
