Description

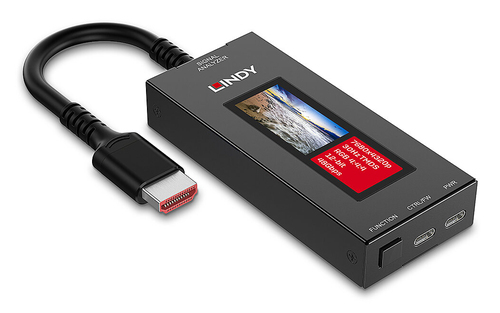

Lindy HDMI 8K60 Signal Analyzer Professional diagnostic tool for HDMI AV signal, Signal analyzer, Black, Metal, Buttons, 4:2:0, LCD
This analyzer supports both FRL and TMDS signal analysis, enabling the evaluation of a wide range of HDMI® signal types up to 40G 8K60 resolution.
For real-time signal monitoring, the upper display presents comprehensive information, including video image quality, resolution, signal format, color space, bit depth, and bandwidth utilization.
It provides a LCD screen for real-time monitoring and browse the options, in addition it can be managed over serial communication though a dedicated USB-C port.
Powered over USB-C port, compact in size yet powerful in capability, the analyzer combines signal analysis, intuitive operation, and reliable performance, making it an ideal tool for HDMI® signal monitoring and diagnostics.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 32695 |
| Our part no. | CR85711 |
| EAN | 4002888326957 |
| Category | Cables & Adapters › Other (1232) |
| Weight | 1.2 kg |
| Features | |
| Product type | Signal analyzer |
| Product colour | Black |
| Housing material | Metal |
| Control type | Buttons |
| Colour sampling | 4:2:0 |
| Built-in display | Yes |
| Display type | LCD |
| Resolution at capture speed | 7680x4320@60fps |
| Colour depth | 12 bit |
| Supported video modes | 4320p |
| HDCP version | 2.3 |
| Dolby technologies | Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, DTS-HD Master Audio |
| Maximum bandwidth (HDMI) | 40 Gbit/s |
| HDMI version | 2.1 |
| Ports & interfaces | |
| USB port type | USB Type-C |
| Connector type | HDMI Type-A |
| USB Type-C ports quantity | 2 |
| Power | |
| Power source | USB Type-C |
| Power consumption | 4.6 W |
| Input voltage | 5 V |
| Input current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
| Compliance certificates | CE, UKCA, Federal Communications Commission (FCC), RoHS, REACH |
| Weight & dimensions | |
| Width | 260 mm |
| Depth | 48 mm |
| Height | 19 mm |
| Weight | 113 g |
| Packaging content | |
| Manual | Yes |
| USB cable | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 292 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 305 g |
| Logistics data | |
| Warranty period | 3 year(s) |
