Description
Lindy 240W 10 Port USB Charging Station, Freestanding, Plastic, Blueberry, Contact, CE, FCC, LVD, RoHS, REACH, California Proposition 65, 24 V

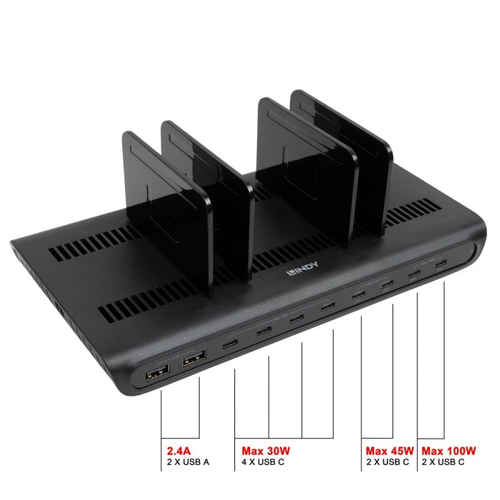

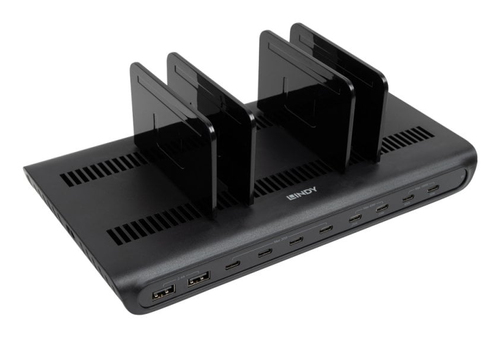

The Lindy 240W 10 Port USB Charging Station allows charging up to 2 USB devices via Type A and 8 via Type C like tablets, smartphones or a laptop or Macbook. Each USB Type A port can provide up to 5V 2.4A, eight USB Type C ports can provide up to 30W, 45W or 100W each to satisfy the most power hungry devices. The two Type C ports which can support 100W each support 65W and 35W if shared. The two Type C ports which can support 45W each support 25W and 20W when shared. If all 10 ports are occupied and/or when total power draw is higher than 270W, 73447 will enter protection mode.
With its smart charging function and support of many different protocols like BC 1.2, Apple 5V 2.4A, QC5, QC3+, FCP, SCP, AFC and SFCP, this USB Charging Station can recognise the connected device to automatically adjust the charging current for a fast and safe charge.
USB Power Delivery Revision 3.0 enables higher power to applications up to 100W, including larger notebooks, gaming PCs, Macbooks, workstations or Docking Stations. Additional Type C PD 3.0 ports with up to 30W and 45W each allow fast, flexible and safe charge of smartphones and tablets.
This USB Charging Station also provides overcurrent and short-circuit protection to avoid excessive current damaging the device.

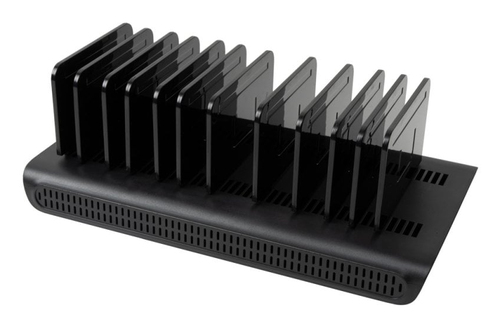

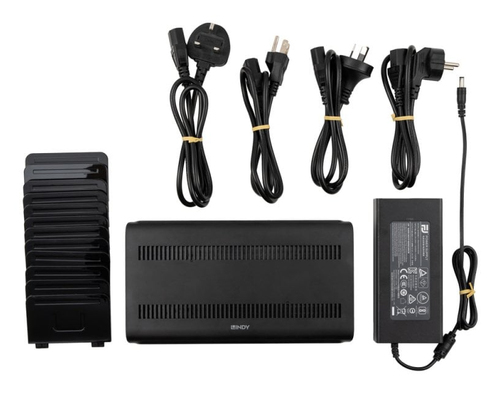

Plastic dividers can be assembled and stood on the top of the unit, which allows different widths for different tablets or mobile phone sizes. This product is perfect for use in schools, libraries, hotels, restaurants or any location that uses multiple devices. Country specific power cables are provided for seamless use of the charging station, ideal for global events or integration into installations abroad.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 73447 |
| Our part no. | CR85737 |
| EAN | 4002888734479 |
| Category | Phones & Mobile Accessories › Power Banks |
| Weight | 2 kg |
| Features | |
| Operating principle | Contact |
| Type | Freestanding |
| Number of devices supported | 10 |
| Material | Plastic |
| Product colour | Blueberry |
| Number of compartments | 10 |
| Over voltage protection | Yes |
| Certification | CE, FCC, LVD, RoHS, REACH, California Proposition 65 |
| Power | |
| AC input voltage | 24 V |
| Maximum power | 211.2 W |
| Maximum output voltage | 20 V |
| Output current | 1.5 A |
| Output current (max) | 3 A |
| Input voltage | 24 V |
| Input current | 10 A |
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
| Weight & dimensions | |
| Width | 248 mm |
| Depth | 135 mm |
| Height | 29 mm |
| Weight | 360 g |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 160 mm |
| Package height | 110 mm |
| Package weight | 1.9 kg |
| Package type | Box |
| Packaging content | |
| Cables included | AC, DC |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| USB ports quantity | 10 |
| USB Type-A output ports | 2 |
| USB Type-C ports quantity | 8 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS, REACH |
| Other features | |
| Warranty period | 2 year(s) |
