Description

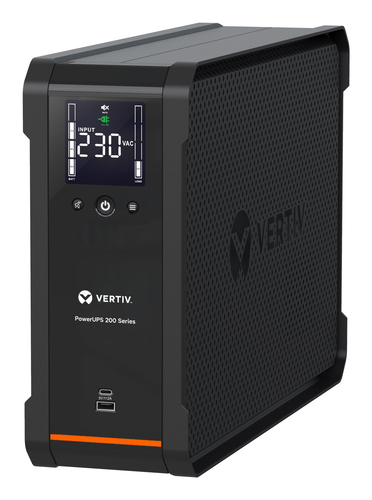

Vertiv PowerUPS 200 Line Interactive PSA6-1000IT-SCH, 1000VA/625W, AVR, USB Charging, Color LCD, User-Replaceable Battery, 4 Schuko Outlets, Three-Year Warranty, Line-Interactive, 1 kVA, 625 W, Sine, 140 V, 290 V
The Vertiv PowerUPS 200 Line Interactive Series PSA6-1000IT-SCH is a compact UPS offering reliable, high-performance battery backup and surge protection for desktop PCs, personal electronics, wireless networks, entertainment devices, surveillance systems, and retail point-of-sale (POS) systems. With automatic voltage regulation, it stabilizes input voltage fluctuations and provides clean, continuous power during outages or brownouts. Its intuitive color LCD display delivers at-a-glance system diagnostics, while the USB-A and USB-C ports allow convenient charging for portable electronics. The hot-swappable, user-replaceable batteries reduce downtime and simplify maintenance, and the free Vertiv Power Assist software enables seamless shutdown of devices, preserving data and hardware integrity. This unit also has a dedicated mute button for quickly silencing alarms, as well as dataline surge protection to safeguard your equipment from power surges traveling through network cables.
Stabilizes output power during fluctuations, extends battery life, and provides clean power with AVR Quickly and safely swap out batteries to extend UPS life with user-replaceable batteries Conveniently charges your mobile devices with the USB-A and USB-C charging ports Shows load levels, alerts, and estimated runtime at a glance with a full-color LCD screen Comes with a full-unit and battery coverage with an advanced replacement warranty for three years
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | PSA6-1000IT-SCH |
| Our part no. | CR88009 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 625 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 195 V |
| Output operation voltage (max) | 255 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Efficiency | 95% |
| Surge protection | Yes |
| Power protection features | Over current, Overcharge, Overload, Short circuit |
| Ports & interfaces | |

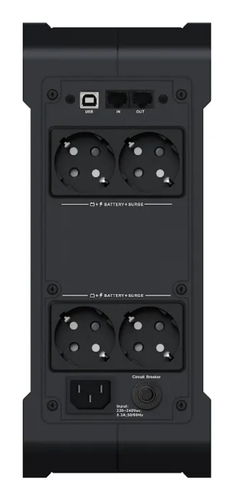

| AC outlet types | Type F |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 11 min |
| Design | |
| Form factor | Tower |
| Cable length | 1.8 m |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | CB, CE, EAC, RCM, REACH, RoHS, UKCA, WEEE |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 430 mm |
| Height | 290 mm |
| Weight | 9.8 kg |
| Packaging data | |
| Package width | 215 mm |
| Package depth | 510 mm |
| Package height | 370 mm |
| Package weight | 12 kg |
| Other features | |
