Description
Vertiv PowerIT rack power distribution unit, 14.4kW, 1P+N+E (IP44), Monitored, 2U, Single-phase, Horizontal, Black, 24 AC outlet(s)

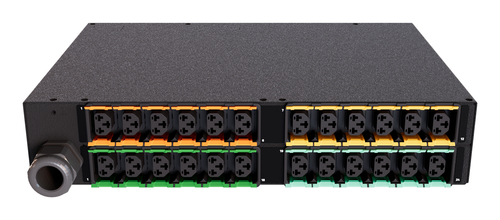

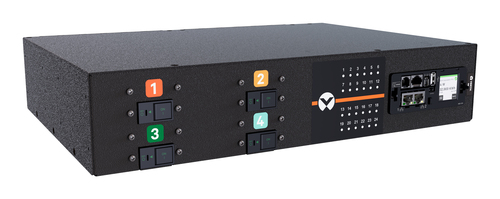

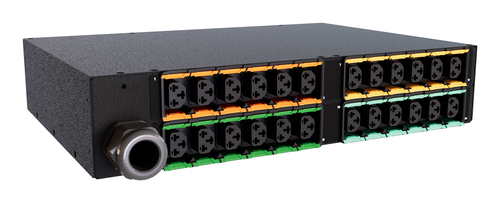

The Vertiv PowerIT Monitored Outlet Level High Density Rack Power Distribution Unit (rPDU) VP6U62A0 is an upgradeable, 60/63A, 240V, 2U, horizontal rPDU with input and outlet level monitoring. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. It also has a 1P+N+E (IP44) plug with 14.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | VP6U62A0 |
| Our part no. | CR94098 |
| Category | Power & UPS › PDUs |
| Weight | 0 kg |
| Design | |
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | Type E / Type F |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| USB ports quantity | 1 |
| Features | |
| Cable length | 3.048 m |
| Management features | |
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
| Power | |
| Nominal input voltage | 240 V |
| Maximum current | 63 A |
| Power protection features | Over current |
| Maximum power | 14400 W |
| Certificates | |
| Compliance certificates | China RoHS, Trade Agreements Act (TAA), RoHS |
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
| Weight & dimensions | |
| Width | 434.7 mm |
| Depth | 304.8 mm |
| Height | 88.8 mm |
| Weight | 9.07 kg |
| Packaging data | |
| Package weight | 9.07 kg |
| Package width | 762 mm |
| Package depth | 660.4 mm |
| Package height | 101.6 mm |
| Logistics data | |
| Country of origin | United States |
