Description
Vertiv PowerIT rack power distribution unit, 57.6kW, hardwired input plug, TAA Compliance, RoHS, China RoHS, UL/CE dual listed, Basic, 0U, Three-phase, Vertical, Black, 36 AC outlet(s)

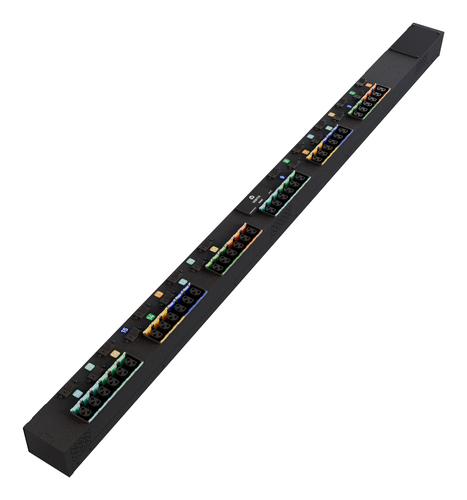

The Vertiv PowerIT VP1UA0A1 is a basic high density rack power distribution unit (rPDU). It is a 80A, 240/415V WYE, 0U, vertical rPDU with 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a hardwired input plug providing 57.6kW of power capacity. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | VP1UA0A1 |
| Our part no. | CR94134 |
| Category | Power & UPS › PDUs |
| Weight | 0 kg |
| Design | |
| PDU types | Basic |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 36 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power | |
| Nominal input voltage | 240 - 415 V |
| Maximum current | 80 A |
| Power protection features | Over current |
| Maximum power | 57600 W |
| Certificates | |
| Compliance certificates | China RoHS, Trade Agreements Act (TAA), RoHS |
| Certification | UL Listed, RCM Mark(EMC Only), CE Marked, UKCA Marked, Complies with IEC 62368-1 |
| Weight & dimensions | |
| Width | 96.5 mm |
| Depth | 76.2 mm |
| Height | 1682.8 mm |
| Weight | 8.62 kg |
| Packaging data | |
| Package weight | 8.62 kg |
| Package width | 279.4 mm |
| Package depth | 2209.8 mm |
| Package height | 177.8 mm |
| Logistics data | |
| Country of origin | United States |
