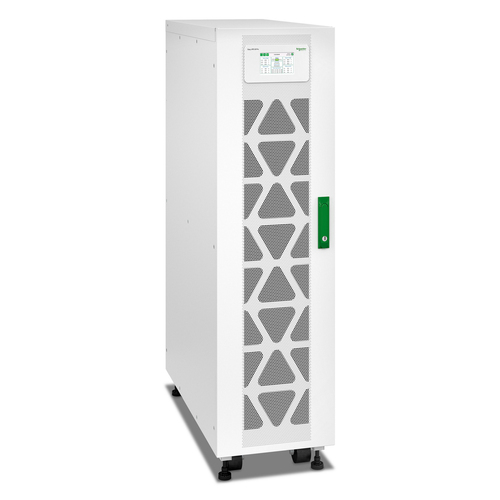

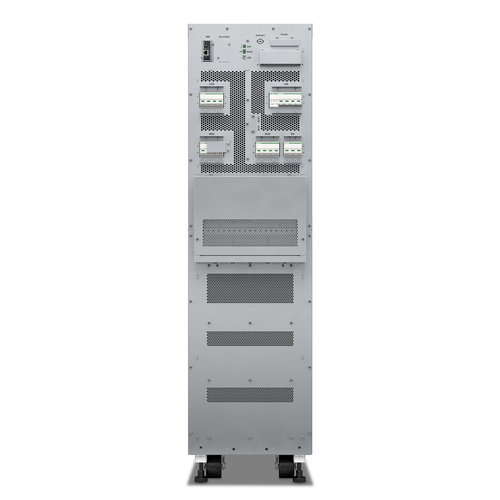

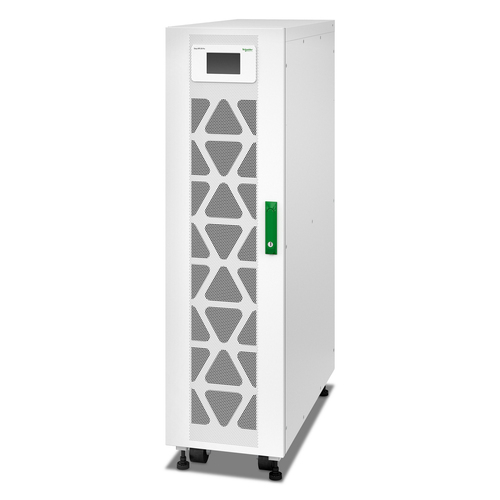

APC Easy UPS 3S Pro 15kVA 400V 3:3 UPS for internal batteries

Description

APC Easy UPS 3S Pro 15kVA 400V 3:3 UPS for internal batteries, Double-conversion (Online), 15 kVA, 15000 W, 380 V, 415 V, 40/70 Hz

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.

Specifications

BrandAPC
Manufacturer part no.E3SP15KHB
Our part no.CS02805
EAN0731304791553
CategoryPower & UPS › UPS
Weight141.5 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity15 kVA
Output power15000 W
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Input frequency40/70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Heat dissipation2197 BTU/h
Number of input phases3
Number of output phases3
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)5%
Input current Total Harmonic Distortion (THD)3%
Noise level56 dB
Battery
Battery technologyLead-Acid
Design
Form factorTower
Product colourWhite
Control typeTouch
Display typeLCD
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Power
Input current (max)23 A
Weight & dimensions
Width380 mm
Depth907 mm
Height1400 mm
Weight119 kg
Packaging data
Package width380 mm
Package depth907 mm
Package height1400 mm
Package weight119 kg
