Description

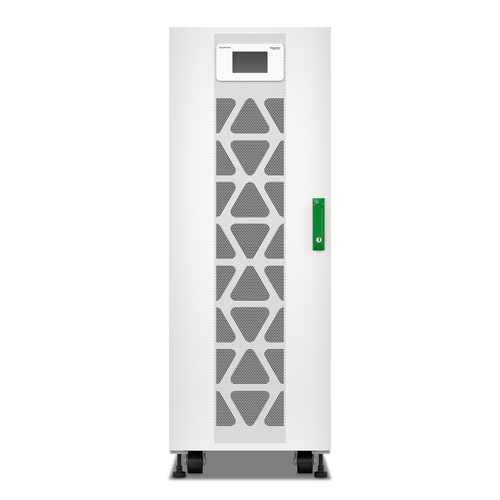

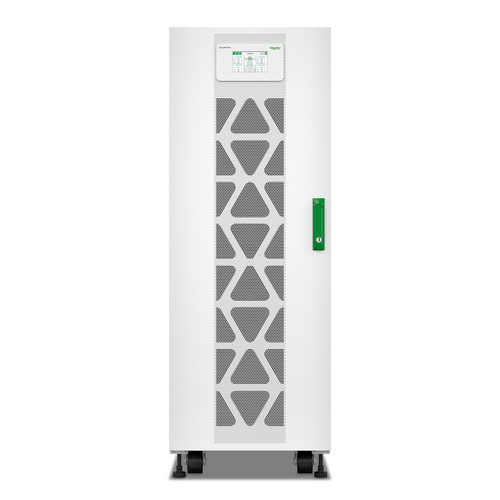

APC Easy UPS 3S Pro 30kVA 400V 3:3 UPS for internal batteries, Double-conversion (Online), 30 kVA, 30000 W, 380 V, 415 V, 40/70 Hz

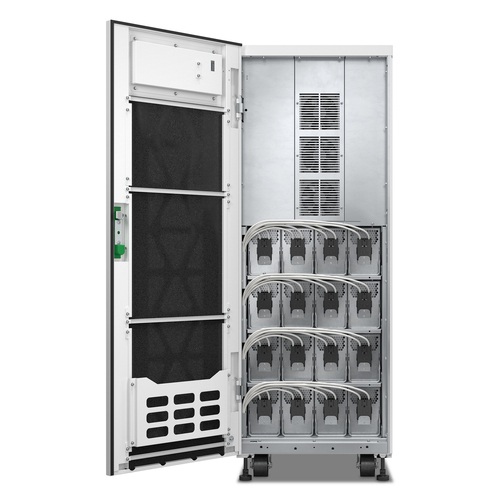

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3SP30KHB |
| Our part no. | CS02821 |
| EAN | 0731304791577 |
| Category | Power & UPS › UPS |
| Weight | 177 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Heat dissipation | 4681 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 61 dB |
| Battery | |
| Battery technology | Lead-Acid |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 500 mm |
| Depth | 940 mm |
| Height | 1400 mm |
| Weight | 151 kg |
| Packaging data | |
| Package width | 500 mm |
| Package depth | 940 mm |
| Package height | 1400 mm |
| Package weight | 151 kg |
