Description

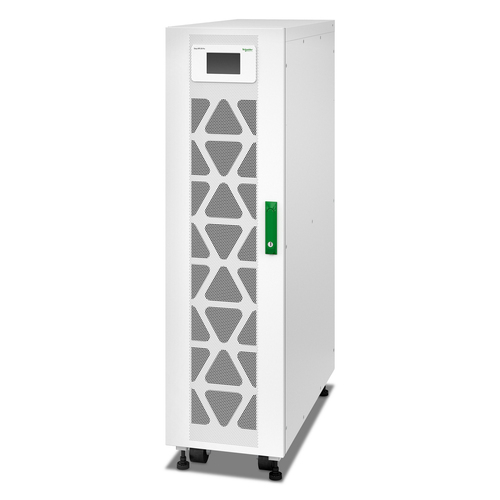

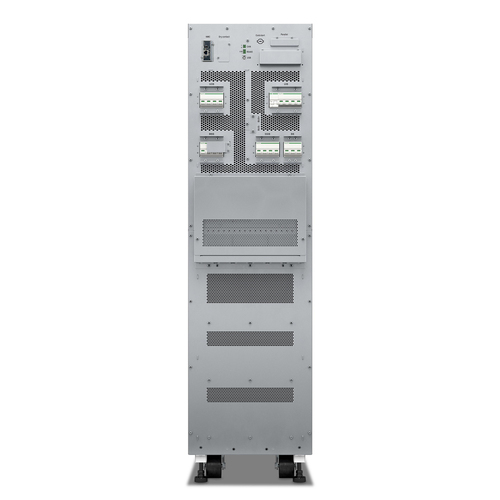

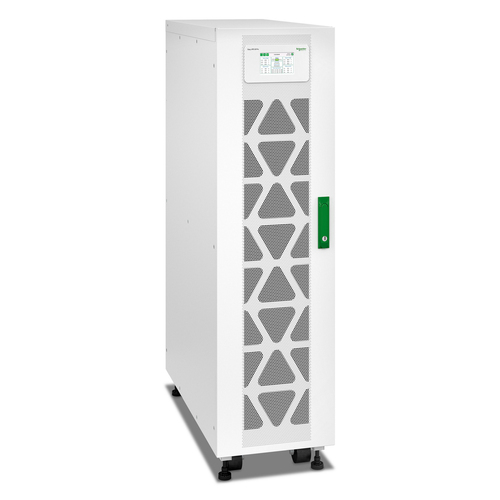

APC Easy UPS 3S Pro 20kVA 400V 3:3 UPS for internal batteries, Double-conversion (Online), 20 kVA, 20000 W, 380 V, 415 V, 40/70 Hz
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3SP20KHB |
| Our part no. | CS02857 |
| EAN | 0731304791560 |
| Category | Power & UPS › UPS |
| Weight | 145 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Heat dissipation | 2971 BTU/h |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Crest factor | 3:1 |
| Noise level | 57 dB |
| Battery | |
| Battery technology | Lead-Acid |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Power | |
| Input current (max) | 31 A |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 119 kg |
| Packaging data | |
| Package width | 380 mm |
| Package depth | 907 mm |
| Package height | 1400 mm |
| Package weight | 145 kg |
