Description
StarTech.com UL Listed Extendable TV Wall Mount for up to 105inch 176lb (80kg) Display, Easy Rear Access, Laterally Adjustable Bracket Supports up to VESA 1000x600, 200 x 200 mm, 1000 x 600 mm, -15 - 10°, -10 - 10°, Steel, Black
Mount a TV to a wall and retain rear access with this extendable, VESA-compatible mount for displays up to 105in
Mount a TV with extendable reach or a slim close-to-wall profile, plus adjustable viewing angles. UL Listed for added confidence in commercial or public installations.
Securely Mount Large, Heavy Displays

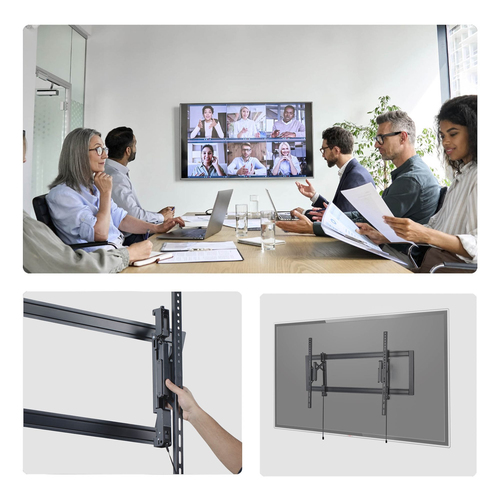

Support TVs up to 105-inch and 176lb (80kg) for meeting rooms, classrooms, and digital signage deployments that need a strong, stable wall bracket.
Mount with Confidence
This TV mount is tested and certified by UL Solutions to UL 2442 and complies with a 4x weight safety factor over its rated load, providing assurance for commercial and public-space installations
Save Space or Extend When Needed

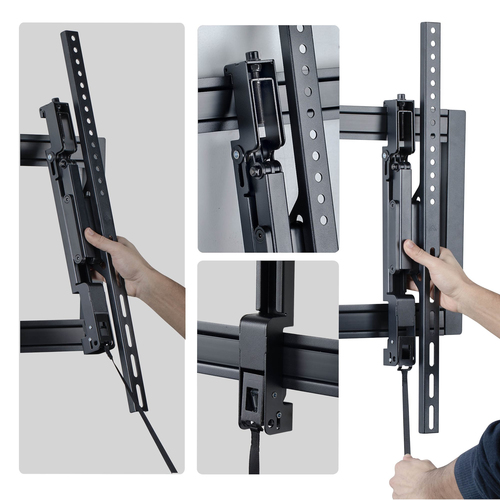

Keep the TV close to the wall at a 2.1in (5.3cm) profile or extend up to 6.8in (17.2cm) to match your setup. Extra extension creates working room for easy rear access during adjustments, maintenance, and cable management.

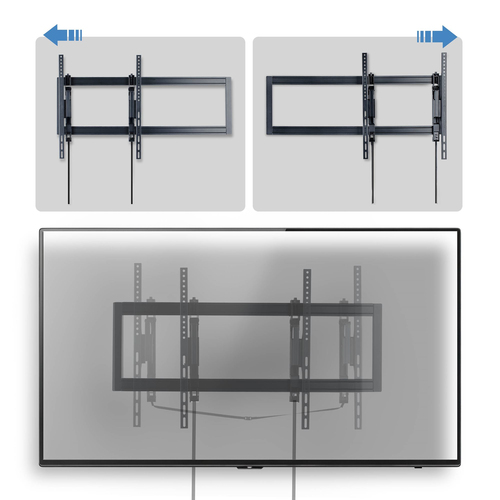

Center the TV on Any Wall Type
Use the side-to-side sliding design to help center the display on wood stud, concrete, or brick walls. VESA compatibility from 200x200 to 1000x600mm helps standardize installs across a wide range of TVs.
Adjust the Screen for Better Viewing
Fine-tune the viewing angle with tilt from +10° to -15° and swivel from +10° to -10° to improve visibility across the room.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 10ULE-TV-WALL-MOUNT |
| Our part no. | CS03122 |
| EAN | 0065030922999 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 0 kg |
| Mounting | |
| Maximum weight capacity | 80 kg |
| Minimum screen size | 139.7 cm (55") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 80 kg |
| Maximum screen size | 2.67 m (105") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 1000 x 600 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400,600 x 600,800 x 400,800 x 600,900 x 600,1000 x 600 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 10° |
| Swivelling | Yes |
| Swivel angle range | -10 - 10° |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | Yes |
| Packaging content | |
| Anchors included | Yes |
| Number of anchors included | 6 |
| Washers included | Yes |
| Number of washers included | 10 |
| Number of spacers included | 8 |
| Screws included | Yes |
| Number of screws | 26 |
| User guide | Yes |
| Mounting brackets included | Yes |
| Number of mounting brackets | 4 |
| Number of wrenches included | 1 |
| Hex key included | Yes |
| Number of hex keys included | 2 |
| Weight & dimensions | |
| Width | 53 mm |
| Depth (max) | 107 cm |
| Height | 350 mm |
| Weight | 18.4 kg |
| Packaging data | |
| Package width | 1118 mm |
| Package depth | 133 mm |
| Package height | 75 mm |
| Package weight | 6.8 kg |
| Logistics data | |
| Master (outer) case width | 1133 mm |
| Master (outer) case length | 150 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 3 pc(s) |
