Description

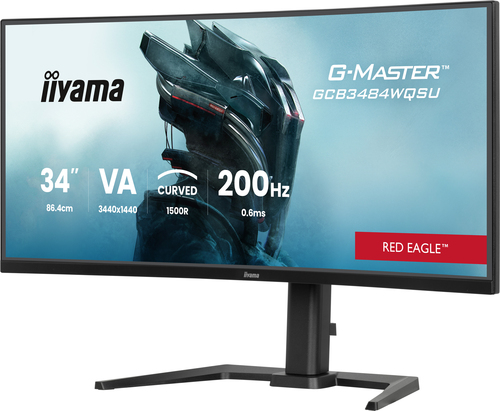

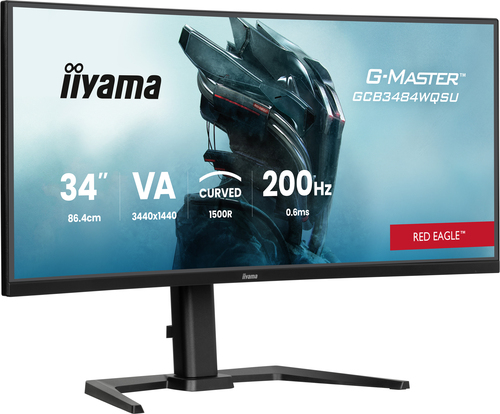

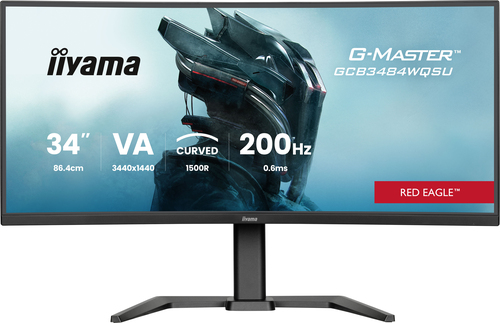

iiyama G-MASTER GCB3484WQSU-B2, 86.4 cm (34"), 3440 x 1440 pixels, UltraWide Quad HD, LCD, Black
Get ahead with the curved GCB3484WQSU-B2 Red Eagle featuring 200Hz refresh rate and 0.6ms response time
Elevate your gaming setup with 34" GCB3484WQSU-B2 curved gaming monitor. Retaining the natural 1500R curvature that wraps around your field of view, this model pushes the boundaries of performance to keep you ahead of the competition.
The ultra-wide WQHD (3440 x 1440) VA panel delivers 4000:1 contrast ratio, ensuring deeper blacks and more vibrant colors that make every environment feel alive. With 200Hz refresh rate, motion is smooth and fluid. For the ultra-competitive, Dual Mode allows you to switch to a hyper-fast 400Hz at WHD resolution, providing the ultimate edge in high-speed titles.
Visuals are further refined with DisplayHDR 400, bringing lifelike brightness and clarity to every frame. To ensure your aim is as sharp as the picture, the new Target Assist crosshair function provides hardware-level precision.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | GCB3484WQSU-B2 |
| Our part no. | CS04765 |
| EAN | 4948570127900 |
| Category | Monitors & Displays › Monitors |
| Weight | 13 kg |
| Display | |
| Display diagonal | 86.4 cm (34") |
| Display resolution | 3440 x 1440 pixels |
| HD type | UltraWide Quad HD |
| Native aspect ratio | 21:9 |
| Display technology | LCD |
| Panel type | VA |
| Touchscreen | No |
| Display brightness (typical) | 450 cd/m² |
| Response time (MPRT) | 0.6 ms |
| Screen shape | Curved |
| Screen curvature rating | 1500R |
| Contrast ratio (typical) | 4000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 200 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.232 x 0.232 mm |
| Horizontal scan range | 30 - 300 kHz |
| Viewable size, horizontal | 79.7 cm |
| Viewable size, vertical | 33.4 cm |
| Display diagonal (metric) | 86 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| Colour depth | 8 bit |
| sRGB coverage (typical) | 99% |
| NTSC coverage (typical) | 80% |
| Performance | |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Design | |
| Market positioning | Gaming |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of downstream ports | 4 |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C downstream ports quantity | 2 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone out | Yes |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Power consumption (typical) | 31 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 808 mm |
| Depth (with stand) | 290 mm |
| Height (with stand) | 578 mm |
| Weight (with stand) | 8.6 kg |
| Height (without stand) | 433 mm |
| Weight (without stand) | 5.9 kg |
| Packaging data | |
| Package width | 982 mm |
| Package depth | 190 mm |
| Package height | 490 mm |
| Package weight | 13 kg |
| USB cable length | 1.85 m |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.85 m |
| HDMI cable length | 1.85 m |
| Power cable length | 1.85 m |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| User controls | picture adjust (contrast, brightness, OD, HDR, FreeSync Premium, ACR, Night Mode, Blue Light Reducer, Motion Blur Reduction, Gamma), input select, audio settings (volume, mute), store user settings (user modes), colour settings (6-axis, colour temperature, user preset, black tuner), image adjust (i-Style Colour, x-res technology, Sharp and soft, HDMI range, direct drive mode, video mode adjust), language, setup menu (OSD horizontal position, OSD vertical position, OSD rotate, OSD time, opening logo, power LED, DDC/CI control, USB charge), Dual Mode, Target Assist, display information, reset |
| Packaging content | quick start guide, safety guide |
| Weight | 8.6 kg |
| Width | 808 mm |
| Depth | 290 mm |
| Control panel | Power Indicator, Joystick: Power / Menu (Center), Up / Signal Select, Down, Left / i-Style Colour / Night Mode / Blue Light Reducer, Right / Volume |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Technical details | |
| Native refresh rate | 60 Hz |
