Description

StarTech.com 2m Panel Mount USB Cable A to A, M/F, USB-A Male to Female Extension Cable, USB 5Gbps Panel Mount Adapter Cable, 2 m, USB A, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black

Add an external panel mount USB 5Gbps connection to a workstation or faceplate

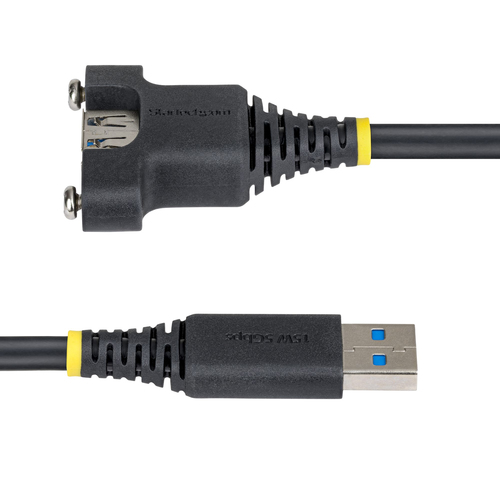

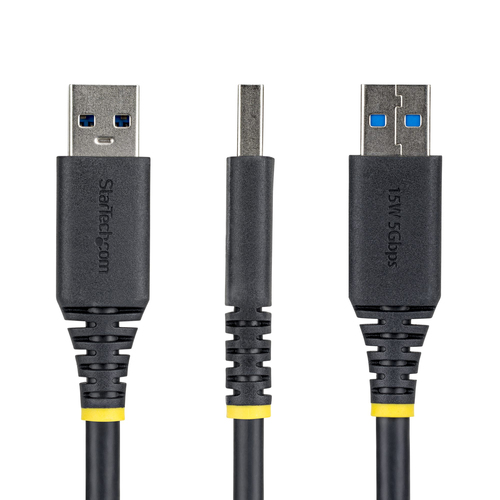

This panel mount USB-A to USB-A extension cable lets you reposition a USB 5Gbps (USB 3.0/3.2 Gen 1) port for easier access and cleaner system layouts. With a flexible TPE jacket and a screw-mounted female connector, it is designed for secure installation in panels, enclosures, and workstations.

Designed for Fixed Installations

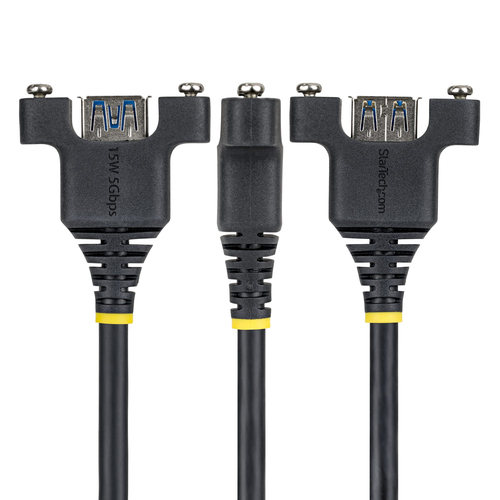

The USB-A female panel-mount connector includes integrated mounting flanges with screws to keep the port firmly in place in vibration-prone or high-use environments. This provides a consistent and accessible connection point for peripherals without requiring access to the back of a system.

Reduce Port Wear and Simplify Access

By relocating frequently used USB ports to a fixed panel, the Panel Mount USB Cable helps reduce repeated strain on host ports. This makes it well suited for public-facing systems such as kiosks or shared workstations, as well as meeting rooms where controlled USB access is required.

Specifications

BrandSTARTECH
Manufacturer part no.USBPNLAFAM2M
Our part no.CS27375
EAN0065030926331
CategoryCables & Adapters › USB Cables & Adapters
Weight0.1 kg
Features
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size24/28
Maximum data transfer rate5 Gbit/s
Cable typeRound cable
Product colourBlack
Weight & dimensions
Cable length2 m
Cable diameter5.5 mm
Weight91.7 g
Packaging data
Package width190 mm
Package depth110 mm
Package height23 mm
Package weight123 g
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Certificates
Compliance certificatesCE, RoHS
Logistics data
Products per master (outer) case40 pc(s)
Master (outer) case width410 mm
Master (outer) case length275 mm
Master (outer) case height265 mm
