Description

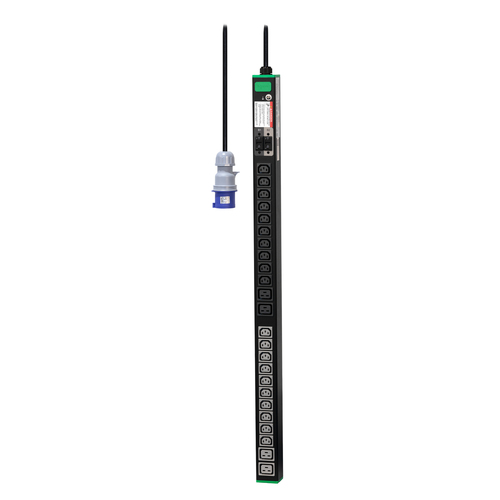

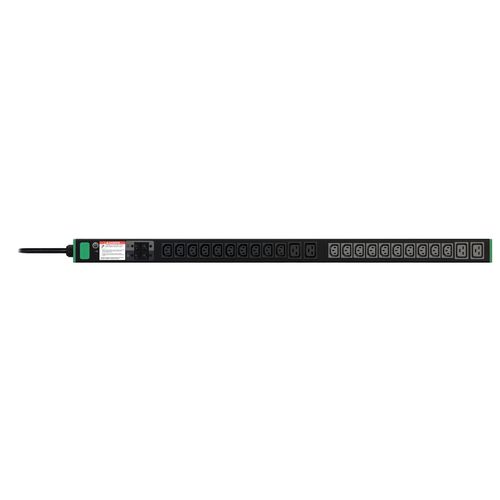

APC Easy Rack PDU, Basic, Vertical, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 PLUG, Basic, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)

The SEP6 Extension for the Basic APC Easy rPDU provides the power for a rack full of devices while being easy to install and inexpensive. It's an integral piece of a plan to deliver a network infrastructure that is standardized and reliable. The SEP6 Extension for the Basic APC Easy rPDU slots perfectly into any data center and supports current solutions with ones to be deployed in the future. It’s nominal power runs between 2.3-22kW and can operate at a maximum temperature of 60C, which is the highest of any Easy rPDU. The SEP6127G is vertical with 7.4kW, 230V and 32A with 20xC13 and 4xC19 outlets. In addition to the operating high temperature the SEP6 Extension for the Basic APC Easy rPDU has 42 outlets, also more than any other Easy rPDU offering. It's a key part of any enivromental friendly policies and reduces energy waste with a Green Premium. The offerings of Single and Three Phase and the rPDU comes equipped with standardized one single platform with TUV certified safety and EMC report. Thanks to its budget friendly pricepoint, the rPDU is perfect when it comes to current and future AI technologies allowing for business growth and margin improvement. Customer satifaction is guaranteed as the rPDU comes with a standard two year warranty for any field replacement units.

Specifications

BrandAPC
Manufacturer part no.SEP6127G
Our part no.CS33714
EAN0731304804567
CategoryPower & UPS › PDUs
Weight3.3 kg
Design
PDU typesBasic
TypeSingle-phase
Rack capacity0U
MountingVertical
Product colourBlack
Ports & interfaces
AC outlets quantity24 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler
Power
Nominal input voltage200 - 240 V
AC input frequency50/60 Hz
Maximum current32 A
Output voltage230 V
Maximum power7400 W
Certificates
CertificationCE
Operational conditions
Operating temperature (T-T)-5 - 60 °C
Storage temperature (T-T)-25 - 60 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width56 mm
Depth1000 mm
Height56 mm
Weight2.45 kg
Packaging data
Package weight3.34 kg
Package width170 mm
Package depth1160 mm
Package height126 mm
