Description

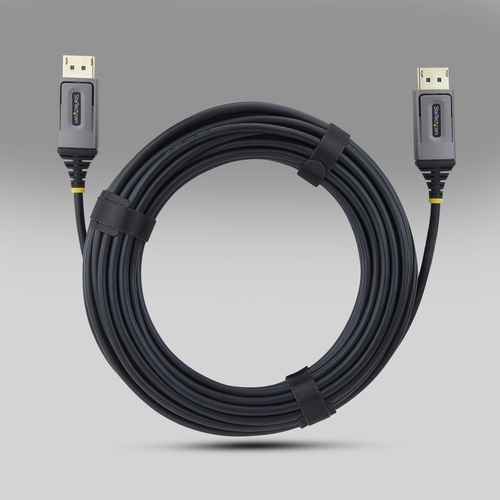

StarTech.com 8K-AOC-20M-DP-CABLE, 20 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 8K-AOC-20M-DP-CABLE |
| Our part no. | CS42379 |
| EAN | 0065030926720 |
| Category | Cables & Adapters › Display Cables |
| Weight | 0.6 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 7680 x 4320, 3840 x 2160, 2560 x 1440, 5120 x 2880 |
| Maximum refresh rate | 240 Hz |
| HDCP | Yes |
| HDCP version | 2.3 |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2a |
| Cable length | 20 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Cable rating | CMP |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28/30 |
| High Dynamic Range (HDR) supported | Yes |
| Data transfer rate | 32.4 Gbit/s |
| HBR3 support | Yes |
| Cable type | Round cable |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 530 g |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 225 mm |
| Package height | 38 mm |
| Package weight | 600 g |
| Logistics data | |
| Master (outer) case width | 465 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 265 mm |
| Products per master (outer) case | 20 pc(s) |
