Description

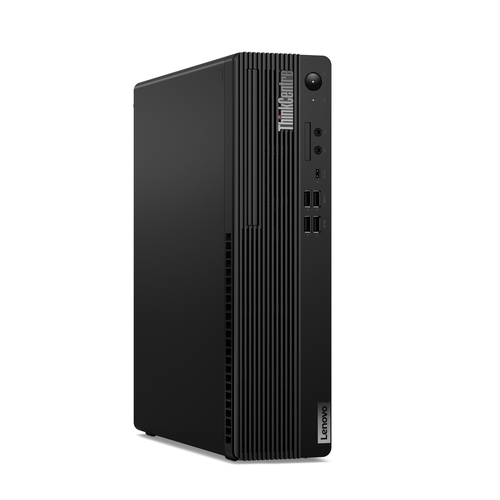

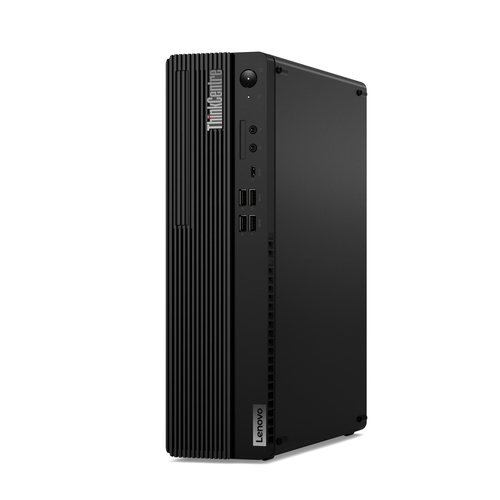

Lenovo ThinkCentre M90s Gen 5, Intel® Core™ i7, i7-14700, 16 GB, 512 GB, DVD±RW, Windows 11 Pro
Peak Processing Performance
No program is too intricate, and no file is too massive to hinder the Lenovo ThinkCentre M90s Gen 5 (Intel) small form factor (SFF) from operating at the speed of human imagination. With cutting-edge Intel vPro® Enterprise technology and Intel® Core™ processors, this desktop delivers real-world, top-notch performance for business needs.
Confidently Secured
Lenovo ThinkShield offers thorough security, combining hardware and software to protect your data. The discrete Trusted Platform Module (dTPM) chip encrypts passwords and data, while BIOS-based Smart USB Protection prevents unauthorized access through peripherals. Leveraging the Intel vPro® platform, this device enhances data and asset security.
Expandable Flexibility
The Smart Cable offers cutting-edge device collaboration through convenient USB-A and USB-C® connections, accommodating all your peripherals, including laptops and tablets. Seamlessly share device control, data, and screen projection between devices with this intelligent feature, supporting high-speed USB-C® data transfers.
Environmentally Aware
This small form factor PC was crafted with a strong emphasis on recycling. Our commitment to sustainability is evident in the integration of recycled post-consumer content (PCC) into various components. The packaging is thoughtfully designed using a combination of recycled and sustainably sourced materials.
Specifications
| Brand | LENOVO |
|---|---|
| Manufacturer part no. | 12V8004FUK |
| Our part no. | CS60394 |
| EAN | 0828132383569 |
| Category | Computers & Servers › Desktop PCs |
| Weight | 0 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1700 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | No |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4400 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | DVD±RW |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Self-Encrypting Drive (SED) | Yes |
| Card reader integrated | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Graphics card | UHD Graphics |
| Performance | |
| Motherboard chipset | Intel Q670 |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Product type | PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | Gigabit Ethernet |

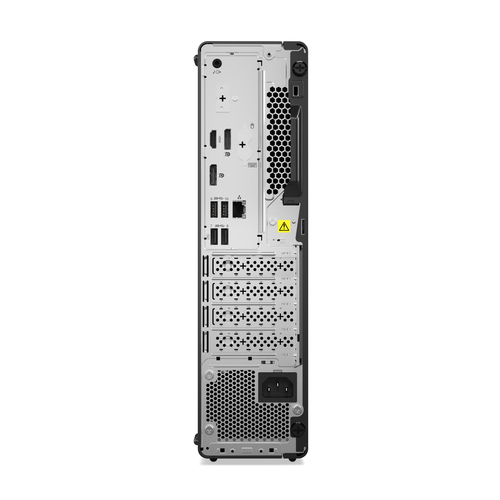

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Microphone in | Yes |
| Power | |
| Power supply | 310 W |
| Design | |
| Chassis type | SFF |
| Volume | 8.2 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Software | |
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
| Intel® Smart Cache | Yes |
| Display | |
| Display included | No |
| Audio | |
| Audio chip | Realtek ALC897Q-CG |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Weight & dimensions | |
| Width | 92.5 mm |
| Depth | 297.7 mm |
| Height | 339.5 mm |
| Weight | 5.3 kg |
| Packaging content | |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Certificates | |
| Certification | TCO,RoHS,ErP,GREENGUARD |
| Keyboard | |
| Keyboard connectivity | Wired |
