Description

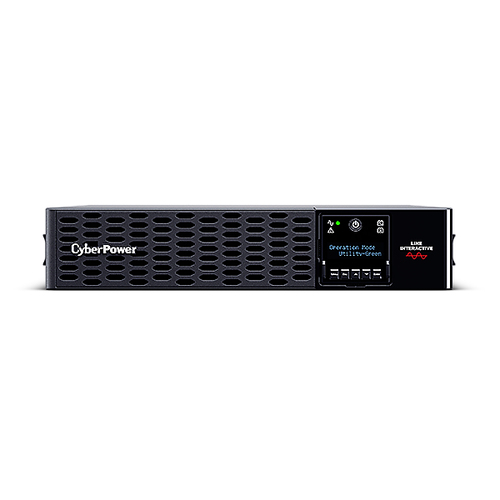

CyberPower PR3000ERTXL2UC, Line-Interactive, 3 kVA, 3000 W, Pure sine, 148 V, 288 V
CyberPower PR3000ERTXL2UC with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. The quick charging technology allows fast and safe battery charging. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
Specifications
| Brand | CYBERPOWER |
|---|---|
| Manufacturer part no. | PR3000ERTXL2UC |
| Our part no. | CS61527 |
| EAN | 4711027797984 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 3000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 148 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 16 A |
| Surge energy rating | 2430 J |
| Response time | 6 ms |
| Heat dissipation | 192.5 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output power factor | 1 |
| Power Factor Correction (PFC) type | Active |
| Emergency Power Off (EPO) | Yes |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Power source type | AC |
| Detachable power cord | Yes |
| Ports & interfaces | |

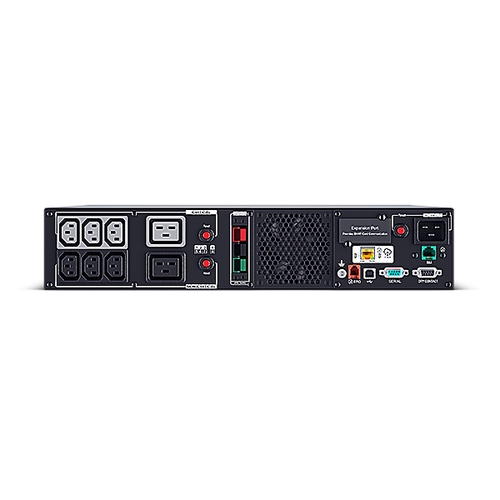

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| RS-232 ports | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Typical backup time at full load | 1.7 min |
| Typical backup time at half load | 7.1 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |

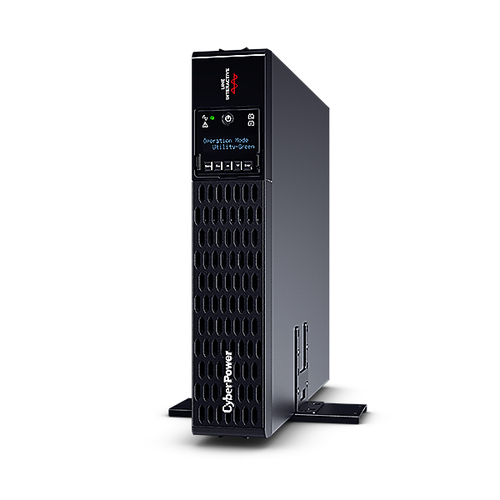

| Form factor | Rackmount/Tower |
| Housing material | Metal |
| Rack capacity | 2U |
| Extended battery module rack capacity | 2U |
| Cable length | 3.05 m |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | Black |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI |
| Packaging content | |
| Batteries included | Yes |
| Rack mount kit | Yes |
| Cables included | Serial |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 433 mm |
| Depth | 500 mm |
| Height | 86.5 mm |
| Weight | 32.8 kg |
| Packaging data | |
| Package width | 560 mm |
| Package depth | 620 mm |
| Package height | 275 mm |
| Package weight | 40.8 kg |
| Package type | Box |
| Logistics data | |
| Country of origin | China |
| Other features | |
| Battery type | RBP0128 |
