Description
StarTech.com Video Wall TV Mount for up to 70-inch and 154lb (70kg) Displays, Landscape/Portrait Orientation, Bracket with Kickstand Design, Six-Point Adjustments, Fixed, Black, -3 - 2°, 14.3 cm, 70 kg, 177.8 cm (70")
Build a professional video wall with quick, tool-less display adjustments
Build modular video wall installations with a TV mount that supports six points of adjustment while still providing pop-out rear access, helping simplify alignment and maintenance in professional AV setups.
Create Scalable Video Wall Setups
Combine multiple mounts to build flexible video wall layouts like 2x2, 1x4, or custom configurations for commercial and public-facing deployments. Each wall bracket supports displays up to 70-inch and154lb (70kg).
Support Landscape or Portrait Mounting
Install displays vertically or horizontally with VESA compatibility from 200x200 to 600x400mm, giving you greater versatility when designing video wall layouts. A wall mounting plate CAD file and instructional video are available for download to support planning and integration.

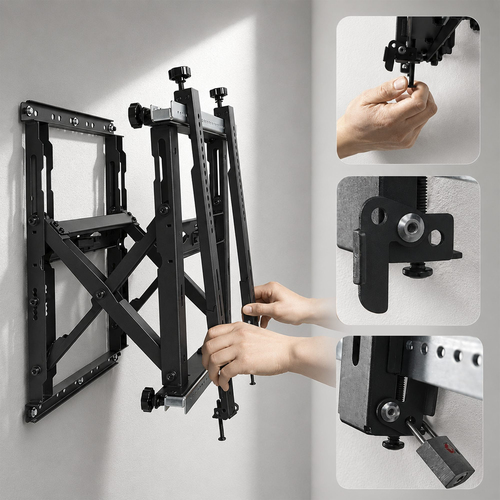

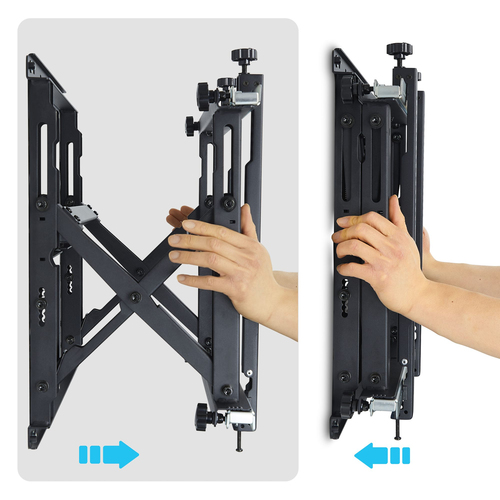

Access Displays Quickly for Service
Pop-out design with a kickstand extends up to 12.8in (32.5cm) from the wall, providing easy rear access for adjustments, maintenance, and cable management on mounted TV panels.

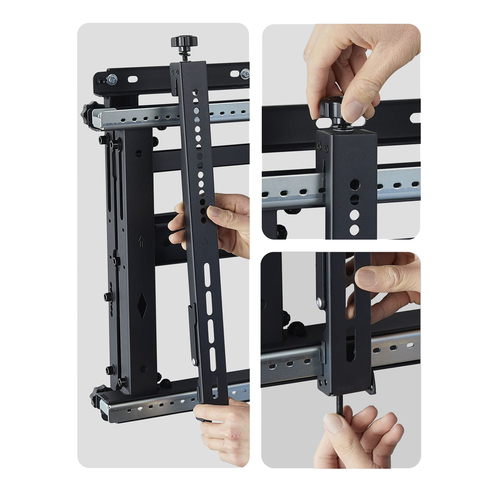

Achieve Precise Screen Alignment
Six adjustments provide control over height, lateral positioning, tilt, swivel, depth, and rotation, helping to fine-tune final placement without remounting the displays for alignment and a clean video wall finish.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | 715LPQ-TV-VIDEO-WALL |
| Our part no. | CS68262 |
| EAN | 0065030919852 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 15.1 kg |
| Ergonomics | |
| Type | Fixed |
| Height adjustment | Yes |
| Product colour | Black |
| Tilt angle range | -3 - 2° |
| Distance to the wall (min) | 14.3 cm |
| Mounting | |
| Maximum weight capacity | 70 kg |
| Minimum screen size | 114.3 cm (45") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400 |
| Orientation | Horizontal/Vertical |
| Weight & dimensions | |
| Width | 640 mm |
| Depth | 120 mm |
| Height | 544 mm |
| Weight | 10.5 kg |
| Packaging data | |
| Package width | 585 mm |
| Package depth | 566 mm |
| Package height | 135 mm |
| Package weight | 15.1 kg |
| Packaging content | |
| Packaging content | 1 - Video Wall Mount Assembly 2 - TV VESA Brackets, I 2 - TV VESA Brackets, II 1 - Lateral Adjuster, Left 1 - Lateral Adjuster, Right 1 - 6mm Hex Key 4 - M6x10mm Screws 4 - M6x14mm Screws 4 - M6x30mm Screws 4 - M8x16mm Screws 4 - M8x35mm Screws 4 - Wall Mounting Screws 6 - Concrete Wall Anchors 10 - Washers 4 - Long Spacers 4 - Short Spacers 1 - Product Documentation |
| Logistics data | |
| Master (outer) case width | 585 mm |
| Master (outer) case length | 566 mm |
| Master (outer) case height | 135 mm |
| Products per master (outer) case | 1 pc(s) |
