Description

StarTech.com Thunderbolt 5 Dock with NVMe Slot for Mac and Windows, Up to Dual 8K 60Hz or Triple 4K 144Hz, 140W Laptop Charging, 5GbE, 120Gbps Bandwidth Boost, Wired, Thunderbolt 5, 10,100,1000,2500,5000 Mbit/s, Grey, CFexpress Type B, SD, 120 Gbit/s

Transform your Thunderbolt 5 laptop into a high-resolution, multi-monitor workstation

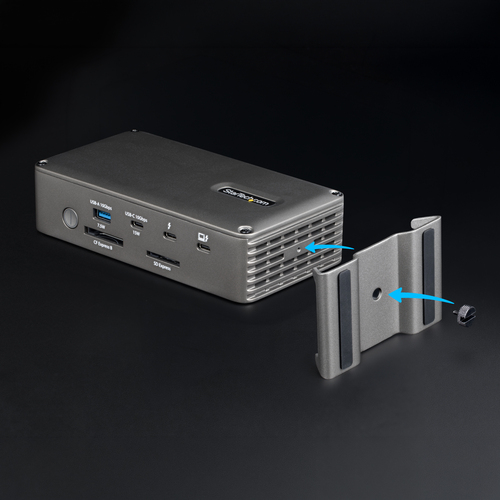

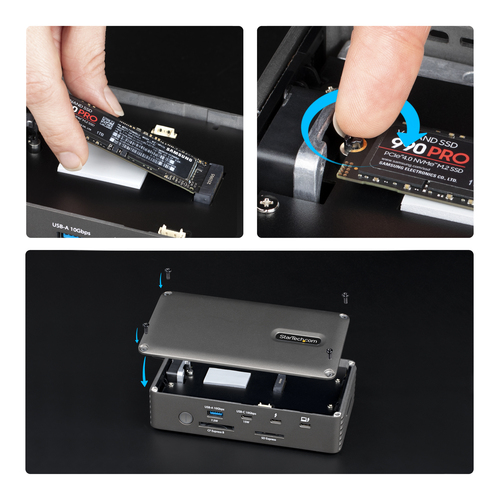

Connect high-performance storage, high-resolution displays, and essential peripherals through a single Thunderbolt dock that expands connectivity and streamlines multi-device workflows. Connect up to two 8K displays or three 4K displays to expand your workspace for video editing, design, and other content creation tasks. Eight USB ports and three Thunderbolt ports keep storage, input devices, and accessories connected, reducing cable clutter and simplifying workstation deployment. Silent passive cooling keeps the dock quiet during normal operation, while an active cooling fan automatically engages under full load to maintain reliable performance. Make upgrades easy with the integrated M.2 slot. Install an NVMe SSD for fast local storage and backups, or add an M.2 AI accelerator to boost on-device AI performance for demanding productivity and creative workflows. You can position the dock vertically using the included stand to free up valuable desk space and improve airflow for better cooling. Transfer media faster with integrated SD and CFexpress card readers that support simultaneous high-speed transfers. Included Thunderbolt™ Share software lets two PCs share a keyboard, mouse, and display over a single Thunderbolt connection while enabling file transfers and Windows PC migration-delivering a KVM-like experience without extra hardware.

Specifications

BrandSTARTECH
Manufacturer part no.183UE-TB5USB4DOCK
Our part no.CS91516
EAN0065030912938
CategoryDocks, Bags & Racks › Docking Stations
Weight0 kg
Ports & interfaces
Connectivity technologyWired
Host interfaceThunderbolt 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity3
Thunderbolt 5 ports quantity3
Microphone inNo
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500,5000 Mbit/s
Wake-on-LAN readyYes
Full duplexYes
Performance
Card reader integratedYes
Compatible memory cardsCFexpress Type B, SD
Data transfer rate120 Gbit/s
HD type8K Ultra HD
Maximum digital resolution7680 x 4320 pixels
Number of displays supported3
Maximum refresh rate240 Hz
Cable lock slotYes
Cable lock slot typeKensington, Nano, Noble, Wedge
Product colourGrey
UASP supportYes
Housing materialAluminium
Power
AC input voltage100 - 240 V
Input current3 A
Output voltage20 V
Output current12 A
Power consumption (max)240 W
Compatible power plug typesEU
USB cable length1 m
Software
Windows operating systems supportedWindows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supportedMac OS X 15.0 Sequoia, Mac OS 26 Tahoe
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Width45 mm
Depth168 mm
Height90 mm
Weight636 g
Packaging data
Quantity per pack1 pc(s)
Package width147 mm
Package depth296 mm
Package height113 mm
Package weight1.5 kg
Packaging content
Cables includedThunderbolt
Quick start guideYes
Technical details
Compliance certificatesFederal Communications Commission (FCC), CE
Logistics data
Products per master (outer) case10 pc(s)
Master (outer) case width310 mm
Master (outer) case length480 mm
Master (outer) case height314 mm
Other features
ChipsetIntel - JHL9480, Infineon - PMG1, Infineon - CCG8, Realtek - RTL8157CG, JMicron - JMS581LT, Texas Instruments - TPS2546, VIA Labs - VL822Q8, VIA Labs - VL822Q7, VIA Labs - VL817, Parade - FL5801, Terminus - FE1.1, STMicro - STM32C071F8
