Description

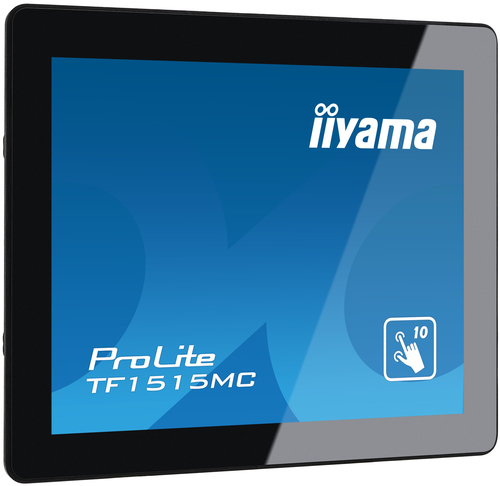

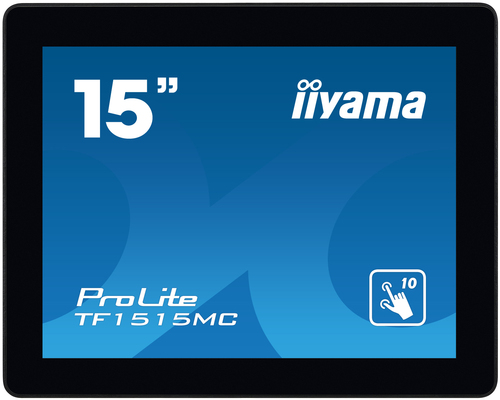

iiyama TF1515MC-B2, 38.1 cm (15"), 1024 x 768 pixels, XGA, LED, 8 ms, Black
The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | TF1515MC-B2 |
| Our part no. | F620868 |
| Category | Monitors & Displays › Other (0352) |
| Weight | 0 kg |
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 315 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 6 mm |
| Ports & interfaces | |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| LED indicators | Yes |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width (with stand) | 364 mm |
| Depth (with stand) | 41.5 mm |
| Height (with stand) | 291 mm |
| Weight (with stand) | 2.9 kg |
| Width (without stand) | 364 mm |
| Depth (without stand) | 291 mm |
| Height (without stand) | 41.5 mm |
| Weight (without stand) | 2.9 kg |
| Packaging data | |
| Package width | 460 mm |
| Package depth | 175 mm |
| Package height | 470 mm |
| Package weight | 4.6 kg |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| AC adapter included | Yes |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Placement supported | Horizontal/Vertical |
| Brightness | 315 cd/m² |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Active display area (W x H) | 304.1 x 228.1 mm |
| Weight | 2.9 kg |
| Height | 291 mm |
| User controls | picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Width | 364 mm |
| Depth | 41.5 mm |
| Control panel | menu,scroll up/ brightness, scroll down/ contrast, select, power |
| Compliance certificates | CB, CE, cULus, EAC, REACH, RoHS, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| Logistics data | |
| Products per pallet | 44 pc(s) |
| Pallet net width | 86 cm |
| Pallet net length | 12 cm |
| Pallet net height | 97 cm |
| Harmonized System (HS) code | 85285210 |
