Description

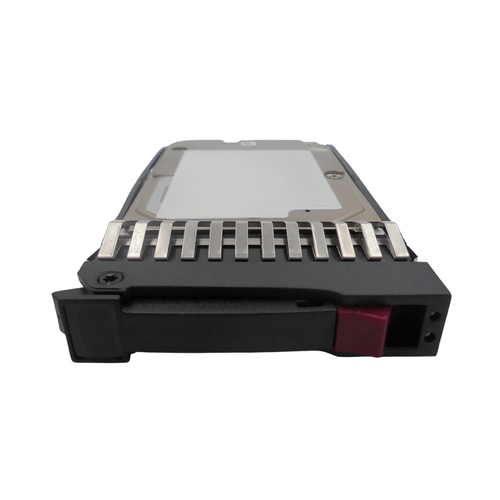

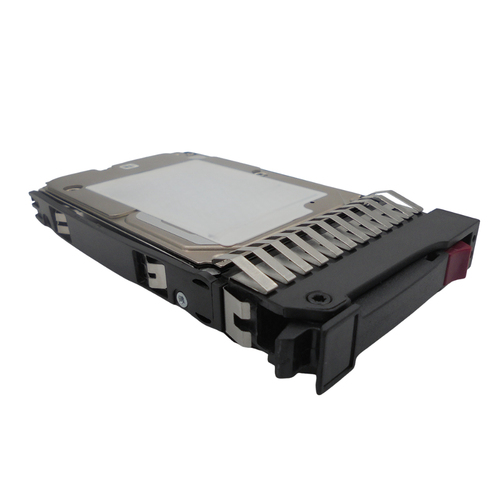

Origin Storage HDD 600GB 2.5in SAS 10000RPM in Hot Swap Caddy, 600 GB, 10000 RPM, 128 MB, 2.5", SAS
Origin Storage Ltd manufactures a full range of Matched Hard Drive & Solid State Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched Drive Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5" with either SATA or SAS interfaces, available in a range of capacities and spin speeds. All our Matched Drive Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Specifications
| Brand | ORIGIN STORAGE |
|---|---|
| Manufacturer part no. | CPQ-600SAS/10-S6 |
| Our part no. | M153591 |
| EAN | 5055146563532 |
| Category | Hard Drives & SSDs › Enterprise Hard Drives |
| Weight | 0 kg |
| Features | |
| HDD capacity | 600 GB |
| HDD speed | 10000 RPM |
| Storage drive buffer size | 128 MB |
| HDD size | 2.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Hot-swap | Yes |
| HDD interface transfer rate | 12 Gbit/s |
| HDD number of heads | 4 |
| Average latency | 2.9 ms |
| Bytes per sector | 512 |
| Refurbished | No |
| Mean time between failures (MTBF) | 2000000 h |
| Power | |
| Power consumption (typical) | 6.68 W |
| Power consumption (idle) | 3.44 W |
| Operating voltage | 5 V |
| Start-up current | 0.41 A |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.5 G |
| Non-operating vibration | 3 G |
| Operating altitude | -304.8 - 3048 m |
| Non-operating altitude | -304.8 - 12192 m |
| Operating shock | 40 G |
| Non-operating shock | 400 G |
| Packaging content | |
| Storage drive adapter included | No |
| Weight & dimensions | |
| Width | 70.1 mm |
| Height | 15 mm |
| Depth | 100.5 mm |
| Weight | 320 g |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Compliance certificates | RoHS |
