Description

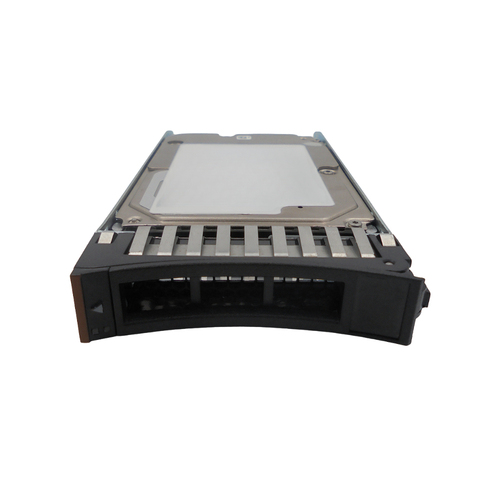

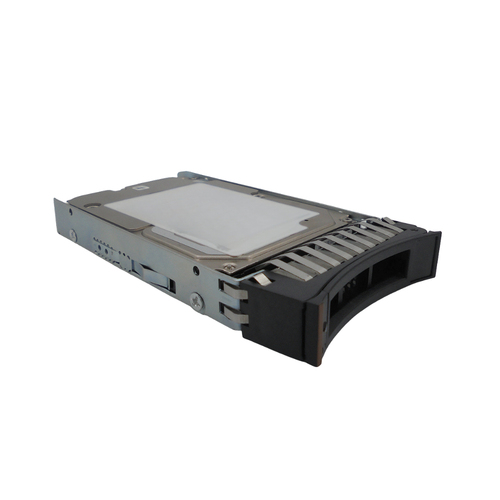

Origin Storage HDD 600GB 2.5in SAS 10000RPM in Hot Swap Caddy, 600 GB, 10000 RPM, 128 MB, 2.5", SAS
Origin Storage Ltd manufactures a full range of Matched Hard Drive & Solid State Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched Drive Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5" with either SATA or SAS interfaces, available in a range of capacities and spin speeds. All our Matched Drive Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Specifications
| Brand | ORIGIN STORAGE |
|---|---|
| Manufacturer part no. | IBM-600SAS/10-S6 |
| Our part no. | M153846 |
| EAN | 5055146566649 |
| Category | Hard Drives & SSDs › Enterprise Hard Drives |
| Weight | 0 kg |
| Features | |
| HDD capacity | 600 GB |
| HDD speed | 10000 RPM |
| Storage drive buffer size | 128 MB |
| HDD size | 2.5" |
| Interface | SAS |
| Type | HDD |
| Component for | Server/workstation |
| Hot-swap | No |
| HDD interface transfer rate | 12 Gbit/s |
| HDD number of heads | 4 |
| Average latency | 2.9 ms |
| Bytes per sector | 512 |
| Refurbished | No |
| Mean time between failures (MTBF) | 2000000 h |
| Power | |
| Power consumption (typical) | 6.68 W |
| Power consumption (idle) | 3.44 W |
| Operating voltage | 5 V |
| Start-up current | 0.41 A |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 0.5 G |
| Non-operating vibration | 3 G |
| Operating altitude | -304.8 - 3048 m |
| Non-operating altitude | -304.8 - 12192 m |
| Operating shock | 40 G |
| Non-operating shock | 400 G |
| Packaging content | |
| Storage drive adapter included | No |
| Weight & dimensions | |
| Width | 70.1 mm |
| Height | 15 mm |
| Depth | 100.5 mm |
| Weight | 320 g |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Internal | Yes |
| USB powered | No |
| Compliance certificates | RoHS |
| Compatible products | IBM/Lenovo BladeCenter E (8677), IBM/Lenovo BladeCenter H (8852), IBM/Lenovo BladeCenter HC10 (7996-XXX), IBM/Lenovo BladeCenter HS12 (1916, 8014, 8028-xxx), IBM/Lenovo BladeCenter HS21 XM (7995-xxx), IBM/Lenovo BladeCenter HS22 7870, IBM/Lenovo BladeCenter LS21 (7971-xxx), IBM/Lenovo BladeCenter LS41 (7972-xxx), IBM/Lenovo System x3200 M3 (Xeon), IBM/Lenovo System x3250 M3 4251, 4252, 4261, IBM/Lenovo System x3400 M2 7836, 7837, IBM/Lenovo System x3500 M2 7839, IBM/Lenovo System x3550 M2 4198, 7946, IBM/Lenovo System x3650 M2 4199, 7947, IBM/Lenovo ThinkServer RD120 6444, 6445, 6446, 6447-xxx, IBM/Lenovo ThinkServer RD220, IBM/Lenovo ThinkServer RS110 6435, 6436, 6437, 6438-xxx, IBM/ Lenovo ThinkServer RS210, IBM/Lenovo ThinkServer TD200 3724, 3808, 3809-xxx, IBM/Lenovo ThinkServer TD200 3815, 3817- xxx, IBM/Lenovo ThinkServer TD200 3824, 3826, 3836-xxx, IBM/Lenovo ThinkServer TD200x 3719, 3821, 3822, 3823-xxx |
