Description

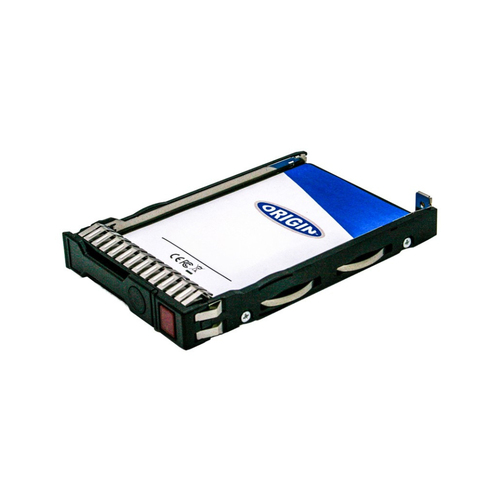

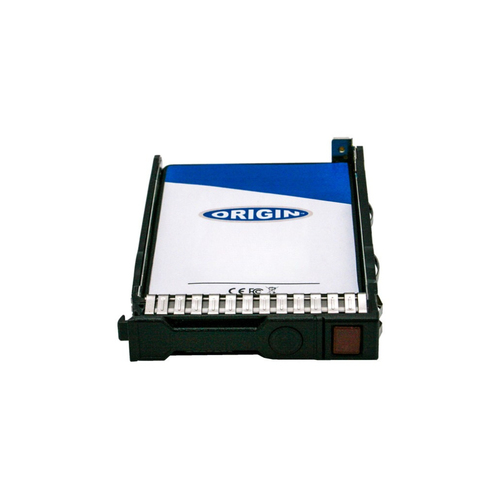

Origin Storage SSD 240GB 2.5in SATA 1DWPD in Hot Swap Caddy, 240 GB, 2.5", 500 MB/s, 6 Gbit/s
Origin Storage Ltd manufactures a full range of Matched SSD Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched SSD Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5", M.2 & AIC with either SATA, SAS or PCIe interfaces respectively, available in a range of capacities and drive write endurances for laptop, desktop or Server. All our Matched SSD Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Specifications
| Brand | ORIGIN STORAGE |
|---|---|
| Manufacturer part no. | CPQ-240MLC-S7 |
| Our part no. | M156414 |
| EAN | 5055146601487 |
| Category | Hard Drives & SSDs › SSDs |
| Weight | 0 kg |
| Features | |
| NAND flash type | MLC (Multi Level Cell) |
| SSD capacity | 240 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA |
| NVMe | No |
| Memory type | MLC |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Read speed | 500 MB/s |
| Write speed | 260 MB/s |
| Random read (4KB) | 68000 IOPS |
| Random write (4KB) | 10200 IOPS |
| Random read (100% span) | 68000 IOPS |
| Random write (100% span) | 10200 IOPS |
| Read latency | 55 µs |
| Write latency | 66 µs |
| Lithography | 16 nm |
| Hot-swap | Yes |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| SSD temperature monitoring | Yes |
| Power Failure Management Plus (PFM+) | No |
| SSD usage tag | Data center |
| Power | |
| Power consumption (idle) | 0.6 W |
| Brand-specific features | |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | No |
| Weight & dimensions | |
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 7 mm |
| Weight | 88 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 70% |
| Operating vibration | 1000 G |
| Non-operating vibration | 1000 G |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Other features | |
| Internal | Yes |
| Warranty period | 5 year(s) |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
