Description

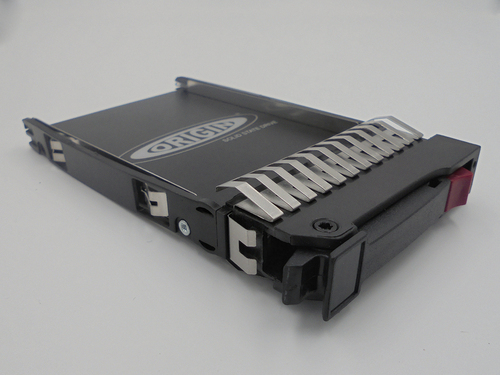

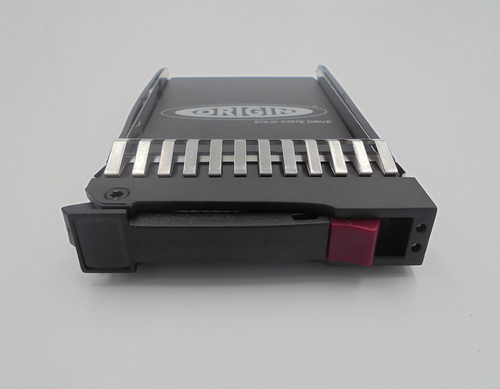

Origin Storage SSD 1920GB 2.5in SATA MWL 3DWPD in Hot Swap Caddy, 1.92 TB, 2.5", 510 MB/s, 6 Gbit/s
Origin Storage Ltd manufactures a full range of Matched SSD Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched SSD Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5", M.2 & AIC with either SATA, SAS or PCIe interfaces respectively, available in a range of capacities and drive write endurances for laptop, desktop or Server. All our Matched SSD Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Specifications
| Brand | ORIGIN STORAGE |
|---|---|
| Manufacturer part no. | CPQ-1920EMLCMWL-S6 |
| Our part no. | M158354 |
| EAN | 5056006105992 |
| Category | Hard Drives & SSDs › SSDs |
| Weight | 0 kg |
| Features | |
| NAND flash type | MLC (Multi Level Cell) |
| Security algorithms | 256-bit AES |
| SSD capacity | 1.92 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA |
| NVMe | No |
| Memory type | MLC |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Read speed | 510 MB/s |
| Write speed | 485 MB/s |
| Maximum read (4KB) | 95000 IOPS |
| Maximum write (4KB) | 28000 IOPS |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 28000 IOPS |
| Write latency | 110 µs |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| ECC | No |
| Hot-swap | Yes |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Active garbage collection | Yes |
| TBW rating | 10512 |
| Power | |
| Power consumption (average) | 3 W |
| Weight & dimensions | |
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 7 mm |
| Weight | 54.3 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 2.17 G |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Other features | |
| Internal | Yes |
| Warranty period | 5 year(s) |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
