Description

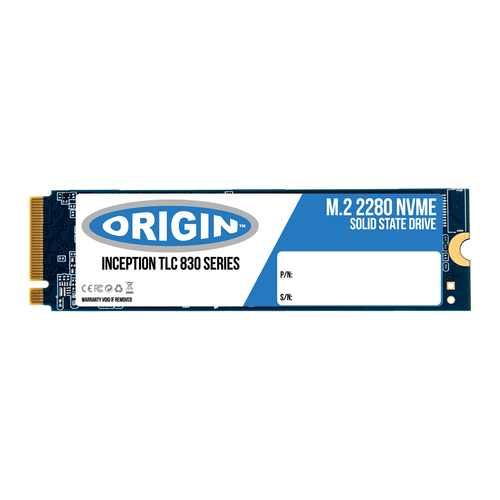

Origin Storage Inception SSD 1TB NVMe M.2 3D TLC 80mm, 1 TB, M.2, 2100 MB/s, 8 Gbit/s
Origin Storage Ltd manufactures a full range of Matched SSD Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched SSD Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5", M.2 & AIC with either SATA, SAS or PCIe interfaces respectively, available in a range of capacities and drive write endurances for laptop, desktop or Server. All our Matched SSD Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Specifications
| Brand | ORIGIN STORAGE |
|---|---|
| Manufacturer part no. | OTLC1TB3DNVMEM.2/80 |
| Our part no. | M15C354 |
| EAN | 5056006150497 |
| Category | Hard Drives & SSDs › SSDs |
| Weight | 0 kg |
| Features | |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Hardware encryption | No |
| Data transfer rate | 8 Gbit/s |
| Read speed | 2100 MB/s |
| Write speed | 1900 MB/s |
| Random read (4KB) | 102400 IOPS |
| Random write (4KB) | 179200 IOPS |
| Access time | 0.2 ms |
| Seek time | 0 ms |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Hot-swap | No |
| Low-density parity-check (LDPC) | Yes |
| Mean time between failures (MTBF) | 1000000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| TBW rating | 400 |
| Power | |
| Operating voltage | 3.3 V |
| Power consumption (read) | 2.84 W |
| Power consumption (write) | 3.22 W |
| Power consumption (idle) | 0.47 W |
| Packaging data | |
| Storage drive adapter included | No |
| Screws included | No |
| Package type | Blister |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 105 °C |
| Operating relative humidity (H-H) | 5 - 98% |
| Storage relative humidity (H-H) | 5 - 98% |
| Operating vibration | 16 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 120000 m |
| Other features | |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
| Compatible products | Universal |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
