Description

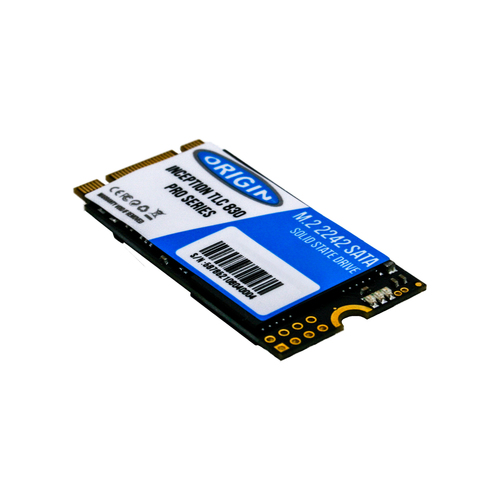

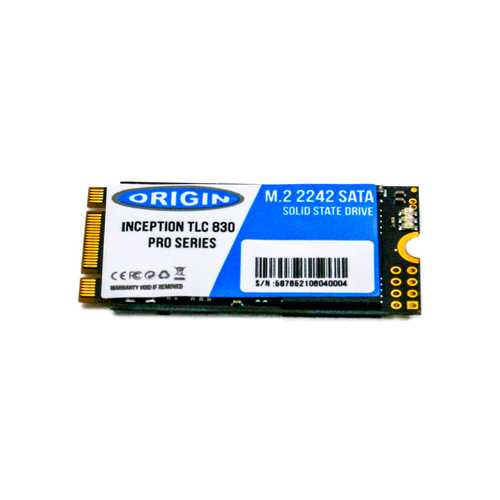

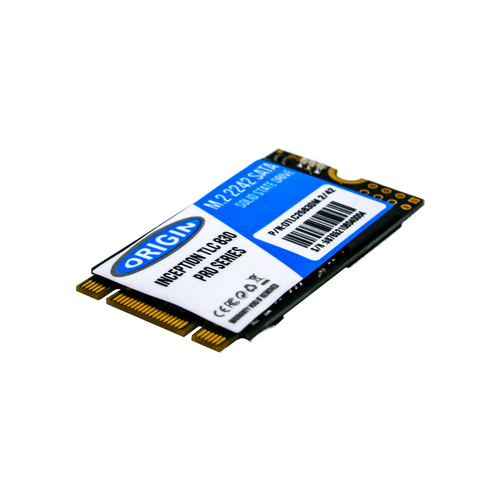

Origin Storage Inception TLC830 Pro Series 256GB M.2 (NGFF) 42mm SATA 3D TLC SSD, 256 GB, M.2, 550 MB/s, 6 Gbit/s
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
Specifications
| Brand | ORIGIN STORAGE |
|---|---|
| Manufacturer part no. | OTLC2563DM.2/42 |
| Our part no. | M15C786 |
| EAN | 5056006154969 |
| Category | Hard Drives & SSDs › SSDs |
| Weight | 0 kg |
| Features | |
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Read speed | 550 MB/s |
| Write speed | 500 MB/s |
| Random read (4KB) | 53760 IOPS |
| Random write (4KB) | 56320 IOPS |
| Access time | 0.2 ms |
| Seek time | 0 ms |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Hot-swap | No |
| Low-density parity-check (LDPC) | Yes |
| Mean time between failures (MTBF) | 1000000 h |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| TBW rating | 100 |
| Power | |
| Operating voltage | 3.3 V |
| Power consumption (read) | 2.78 W |
| Power consumption (write) | 4.28 W |
| Power consumption (idle) | 0.5 W |
| Packaging data | |
| Storage drive adapter included | No |
| Screws included | No |
| Package type | Blister |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 105 °C |
| Operating relative humidity (H-H) | 5 - 98% |
| Storage relative humidity (H-H) | 5 - 98% |
| Operating vibration | 16 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 120000 m |
| Other features | |
| Compliance certificates | RoHS |
| Compatible products | Universal |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
